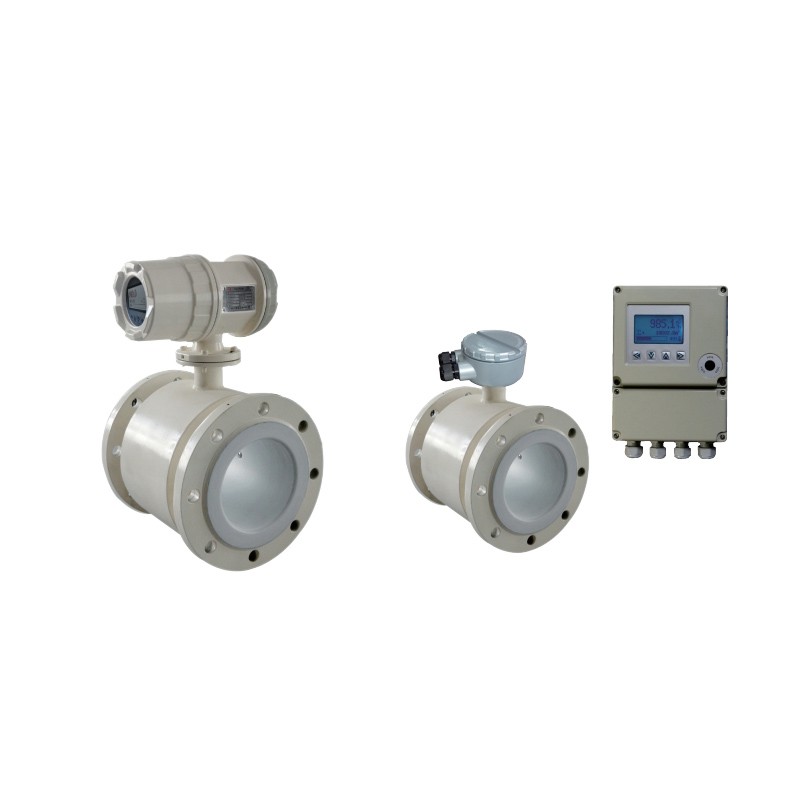

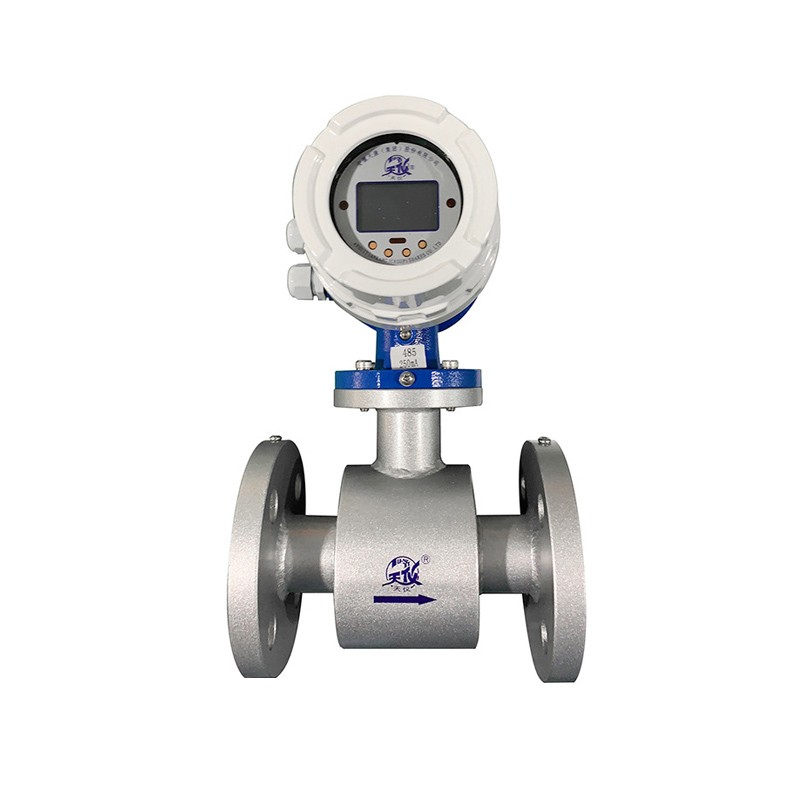

Anhui Tiankang Group TK1000 series electromagnetic flowmeter

Anhui Tiankang Group TK1000 series electromagnetic flowmeter,Faraday's law of induction (which refers to the induced electric potential generated inside the conductor when it passes through a magnetic field) is the basic principle of electromagnetic flowmeter measurement. This measurement principle can be applied to conductive fluids flowing into a pipe with a magnetic field perpendicular to the direction of the fluid. The electric potential induced in the fluid can be measured using two symmetrically arranged electrodes. The signal voltage UE is proportional to the magnetic induction intensity B, the electrode spacing D and the average fluid velocity v. Since the magnetic induction intensity B and the electrode distance D are constant, the signal voltage UE is proportional to the average flow velocity v. The equation used to calculate the volumetric flow rate states that the signal voltage UE is linearly proportional to the volumetric flow rate. The induced signal voltage is converted into graduated, analog and digital output signals in the converter.

Anhui Tiankang Group TK1000 series electromagnetic flowmeter Features
Using the world's leading excitation technology, the excitation circuit is simple, stable and reliable, and has the performance of artificial intelligence.
There are no moving parts and flow-blocking parts in the pipeline, and there is almost no additional pressure loss during measurement.
The measurement results are independent of physical parameters such as flow velocity distribution, fluid pressure, temperature, density, and viscosity.
The range can be modified online on-site according to the actual needs of the user.
It is suitable for flow measurement of various conductive liquids, such as tap water, sewage, mud, various beverages, chemical raw materials, viscous liquids and suspended solids. With low conductivity measurement function.
Ex explosion-proof design, in line with national explosion-proof technical requirements, has passed the appraisal and acceptance, and can be used in various explosion-proof places.
High-resistance and fast-response design, it can collect weak signals without distortion and respond quickly to flow changes, with a range ratio of up to 100:1.
The use of capacitive technology for empty and full tube detection technology eliminates false alarms.
It has the consistency of converter interchange and no need to re-enter parameters.
A wide range of power modes are available (DC: 18V~36V AC: 85V~265V).
The factory-saved setting function is adopted to ensure that all parameters of the instrument are foolproof.
Infrared remote control function and button operation make operation more convenient.
Provides sensor zero point correction and automatic zero calibration functions.
Full Chinese (English) friendly interface to meet the requirements of all parties.
It has the function of self-calibration and self-test of the converter.
Equipped with lightning protection design circuit. Highly efficient anti-interference circuit, suitable for various harsh environments.
It has digital communication signal outputs such as RS485, RS232, Hart, Modbus and Profibus. Converters and sensors are available in a variety of protection levels and installation methods, including IP68 for submersible installations.
The plug-in electromagnetic flowmeter is easy to install in large pipeline flow detection, does not require flow interruption, and can open holes under pressure on site. It has absolute installation advantages and price advantages.
The measurement of insertion electromagnetic flow is only related to the insertion depth, so the flow meter has wide versatility and strong interchangeability. One model can be applied to the fluid measurement requirements of various specifications of pipelines.
1. Anhui Tiankang Group TK1000 series electromagnetic flowmeter normal working conditions
Ambient temperature: -30～+65℃;
Relative humidity: 5% ~ 90%;
Power supply: single-phase AC power supply 85~265V, 45~63Hz; DC power supply 18VDC~36VDC;
Power dissipation: less than 15W.

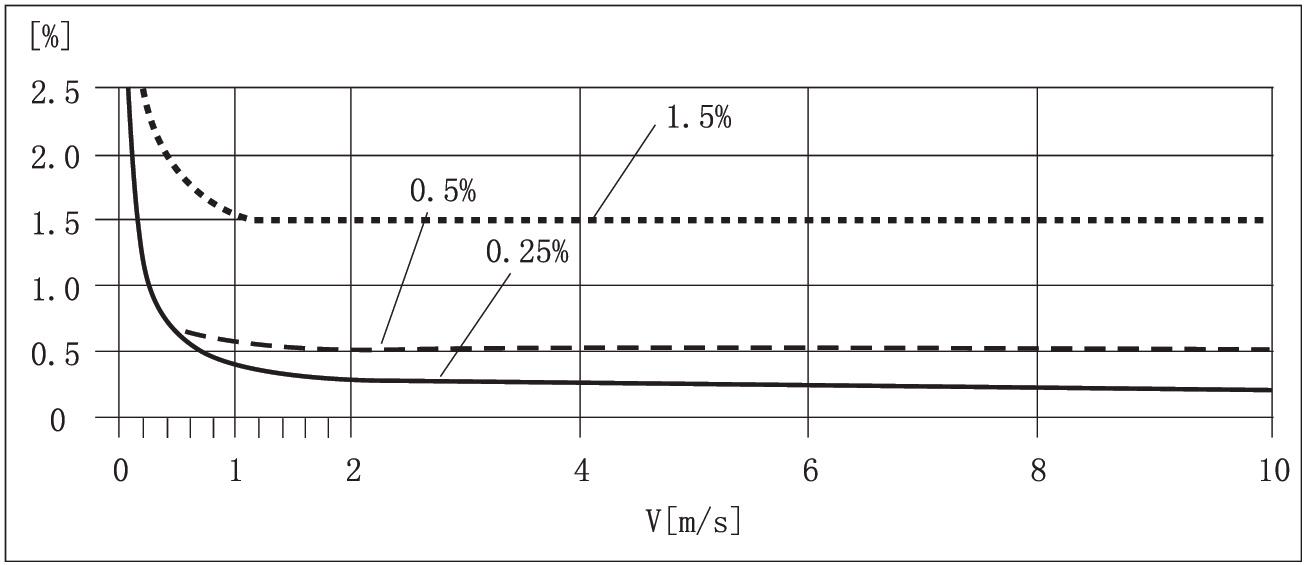

2. Anhui Tiankang Group TK1000 series electromagnetic flowmeter measurement accuracy
TK11 standard type: ±0.5%;
TK12 high accuracy: ±0.2%;
TK13 hygienic type ±0.2%, ±0.5%
TK14 plug-in type: ±1.5%;
TK15: battery powered ±0.5%;
TK16: Electromagnetic heat meter ±1.0%

3. Anhui Tiankang Group TK1000 series electromagnetic flowmeter output variable

3.1 Analog current output
Load resistance: 0~1.5kΩ at 0~10mA;
0~750Ω at 4~20mA.
Basic error: 0.1%±10μA.
3.2 Digital frequency output
Frequency output range: 1~5000Hz;
Output electrical isolation: photoelectric isolation, isolation voltage: >1000VDC;
Frequency output driver: field effect tube output, with a maximum withstand voltage of 36VDC and a maximum load current of 250mA.

Anhui Tiankang Group TK1000 series electromagnetic flowmeter selection of lining materials should be based on the corrosiveness, abrasiveness, and temperature of the measured medium. Hard and soft rubber are generally used. Hard rubber has a corrosion resistance of up to 65°C, while soft rubber is corrosion-resistant. Polytetrafluoroethylene (PTFE) is excellent in heat and chemical resistance, and PFA has similar properties to PTFE but with better mechanical strength. Polyolefin (PO) is also used for specific applications.
