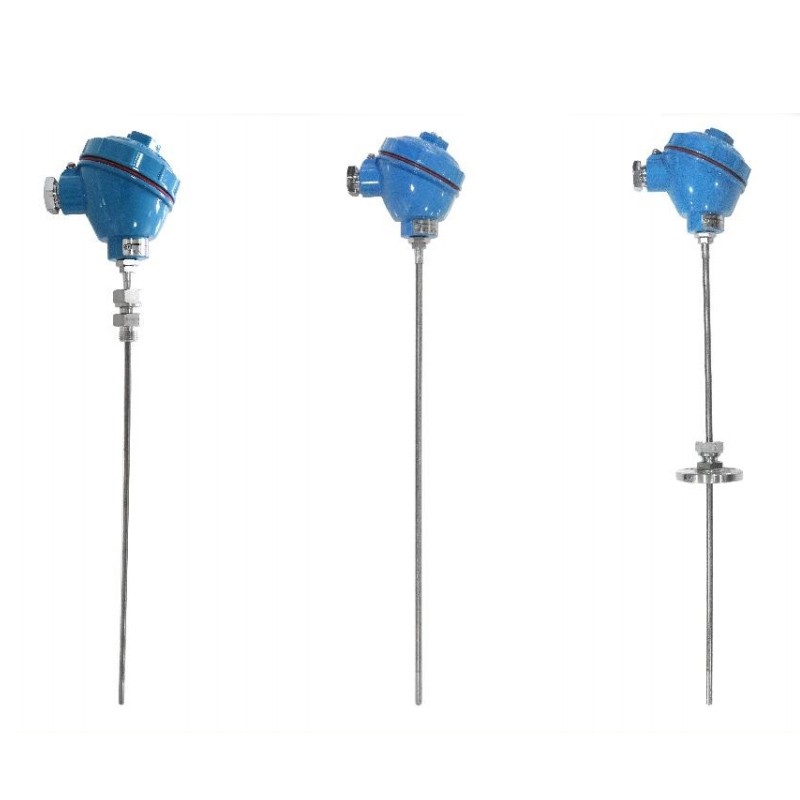

AnHui TianKang Armored Thermal Resistance RTD PT100

AnHui TianKang Armored Thermal Resistance RTD PT100 Usually used in conjunction with display instruments, recording instruments, electronic computers and so on. Directmeasurement of various production processes (-200~500)'c range of liquid, steam and gas media and solid surfacetemperature.

AnHui TianKang Armored Thermal Resistance RTD PT100 Product Principle

Armoured Thermal Resistors measure temperature bv utilizing the characteristic that when a substance changes temperatureits resistance changes with it, When the resistance value changes, a working instrument displays the temperature valuecorresponding to the resistance value.

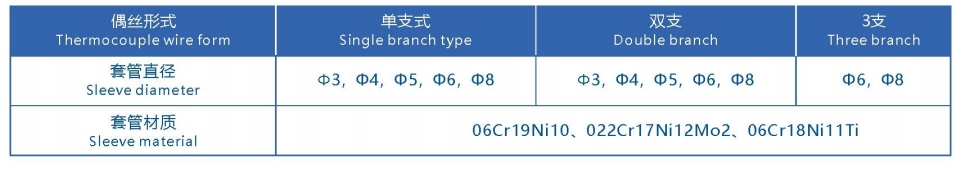

AnHui TianKang Armored Thermal Resistance RTD PT100 wire diameter material

AnHui TianKang Armored Thermal Resistance RTD PT100 product features

1.Less thermal response time, reducing dynamic errors.
2.Bendable mounting for use.
3.Large measuring range.
4.High mechanical strength,good pressure resistance.
5.Junction box protection level lP65,lP66.
Technical Parameter

Executive Standard of the Product:lEC60751 and GB/T30121.

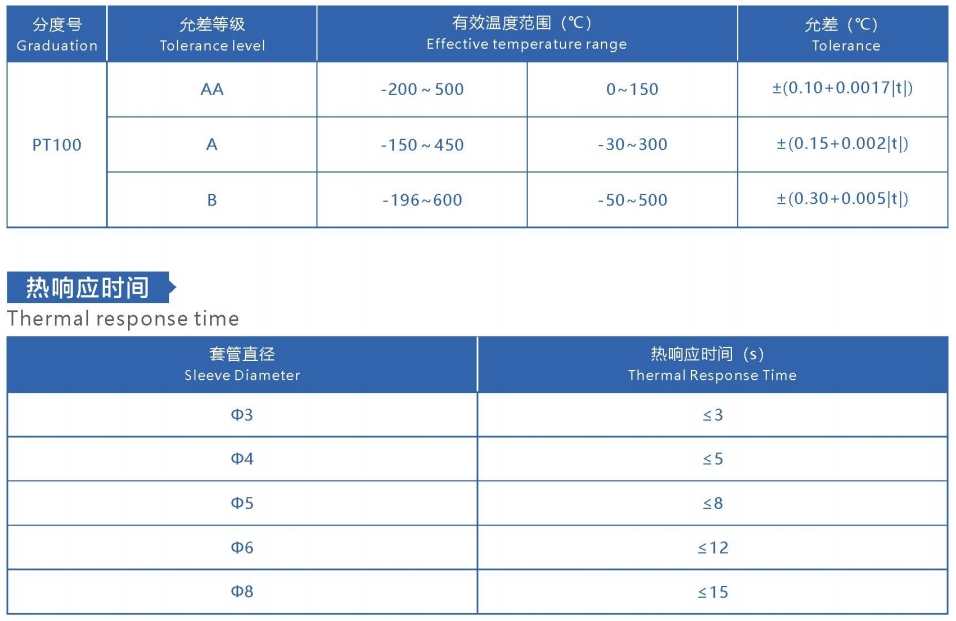

AnHui TianKang Armored Thermal Resistance RTD PT100 Tolerance level

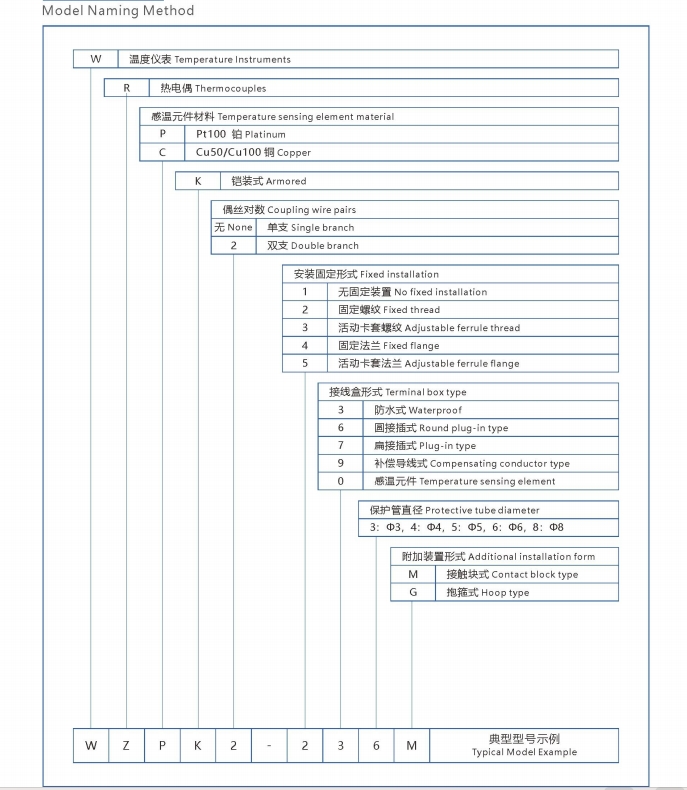

AnHui TianKang Armored Thermal Resistance RTD PT100 Model.
Graduation number.
Accuracylevel.

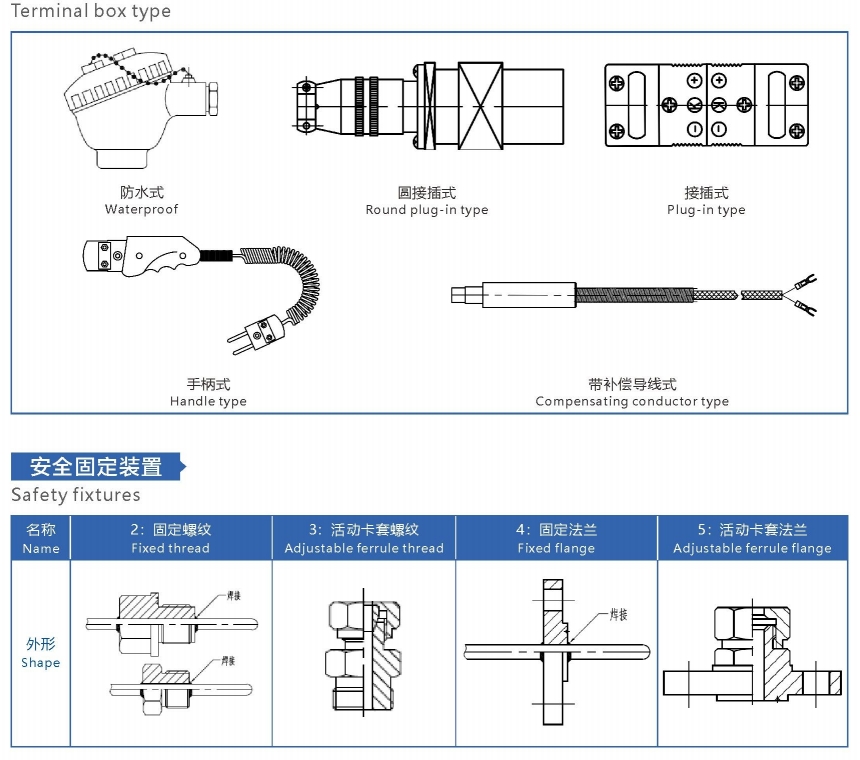

Installation and fixation form.
Protective tube material.
Length orinsertion depth.Example: Armored thermocouple, pT100, Class l, fixed ferrule thread, protective tube GH3030, length 450mm, insertiondepth300mm,WZPK-236,L1=450*300,Classl, protective tube GH3030.
