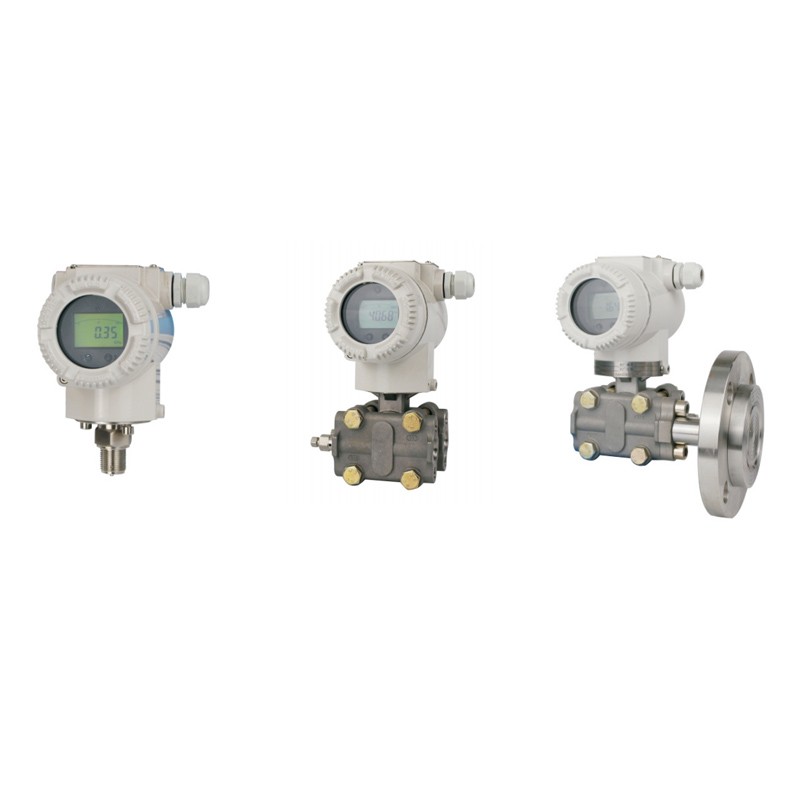

AnHui TianKang 3051 Series Pressure Transmitter

AnHui TianKang 3051 Series Pressure Transmitter with analog or digital signal are used to measure the full series of differential pressure, pressure, absolute pressure of industrial process in industries like petroleum, chemistry, electric power, food, paper making and municipal works.

AnHui TianKang 3051 Series Pressure Transmitter products
CD series differential pressure transmittersCGseries pressure transmittersCAseries absolute pressure transmittersLseries liquid level transmittersH series high temperature and high pressure pressuretransmitters
absolute pressureT series gauge pressure andtransmitters
Fseries sanitation pressure transmittersP series high temperature anti-corrosive pressuretransmitters
AnHui TianKang 3051 Series Pressure Transmitter Main technicalindex
Range ratio: 40:1High accuracy:+0.1%rangeIntelligent: HART field bus protocolBUS:PROF1BUS-PS
Low temperature drift: automatic compensation fordigital temperature sensorFull size:-100pa~120Mpa
Corrosion resistant: provide 316L, Hastelloy, tantalumGood pressure resistantperformance:normal 14MPaHigh static pressure 32MPa

Anti-explosion:intrinsic safety type (iallCT4/T6) explosion suppression type (dlCT4/T6)
AnHui TianKang 3051 Series Pressure Transmitter Performance
Optimum overall performance in the industrial filed+0.15%,making the circuit performance optimalFive year stability of +0.15%, greatly reducing theinspection and maintenance costFaster dynamic response, reducing the variability ofthe processThe introduced technology is able to realize the overallmeasurement solutionLocal/external: zero point/scale adjustment
AnHui TianKang 3051 Series Pressure Transmitter Overall solution
Delicate and light design with optimal performancehigh range ratio requires the minimum of inventory onsite.
Integrated installation valves can be adopted tosave money since the company can assemble thetransmitters and valves at the plant in an integrated wayand the leakage check and test are finished on site.With the 1199“adjustment type” direct installedremote signaling, more than 20% of the purchase andinstallation expense can be saved,the performance isimproved by more than 10% and the response time ismore than 10% faster.
The main elements areimported.With structure advantages and good performance oflatest pressure transmitter at home and abroadGeneral type ofinstallation structure and size.highly replaceable and it is new generation of excellentreplacement product for pressure measurement.
3051C differentialpressure,gauge pressure and absolute pressure transmitter

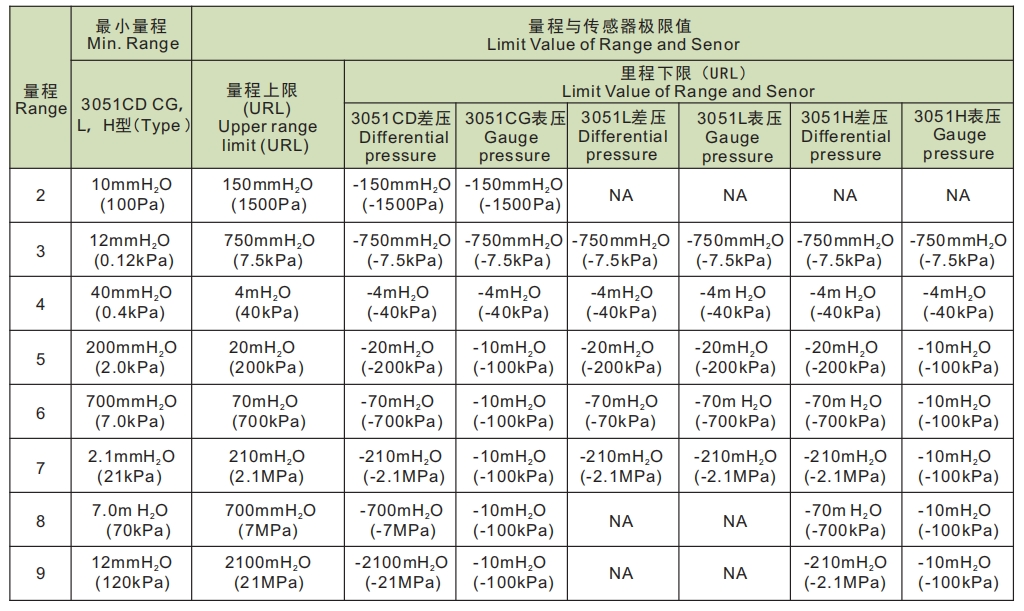

Excellent performance:accuracy0.1%,range ratio: 40:1,Differential pressure:the inspection range from 0.1kPato 21MPa
Gauge pressure: the inspection range from 0.12kPa to 21MPa
Absolute pressure: the inspection range from 1.5kPa to 21MPa

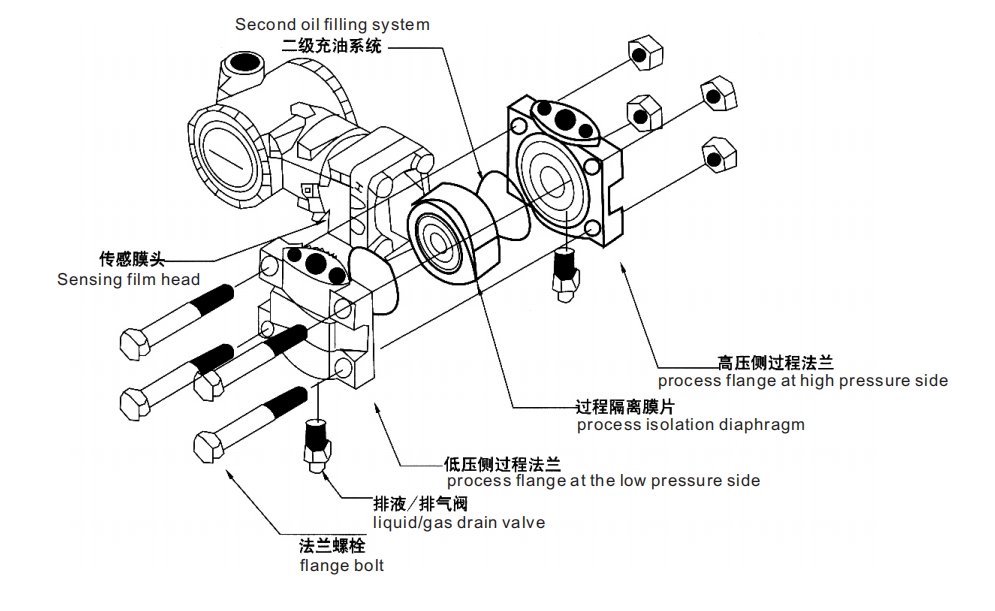

Process isolation diaphragm: stainless steel, hastelloy,Monel,tantalum(only for CD,cG)and gold platedMonel, gold plated stainless steel.Compact design, solid and light in weight, easy toinstall Compound range(only for CD, CG), able tomeasure the negative pressure
3051T differentialpressure,gauge pressure and absolute pressure transmitter
Excellent performance: accuracy0.1%Absolute pressure:the inspection range from 0.12kPato 120MPa
Gauge pressure: the inspection range from 0.12kPa to120MPa
Stainless steel and hastelloy C process isolationdiaphragm
Filling liquid: silicon oil and inertia fluidOptional DlN and connected to process matchingpressure reaction tankCompound range(only for TG),able to measurenegative pressureMaximum overpressure over 1000 times
