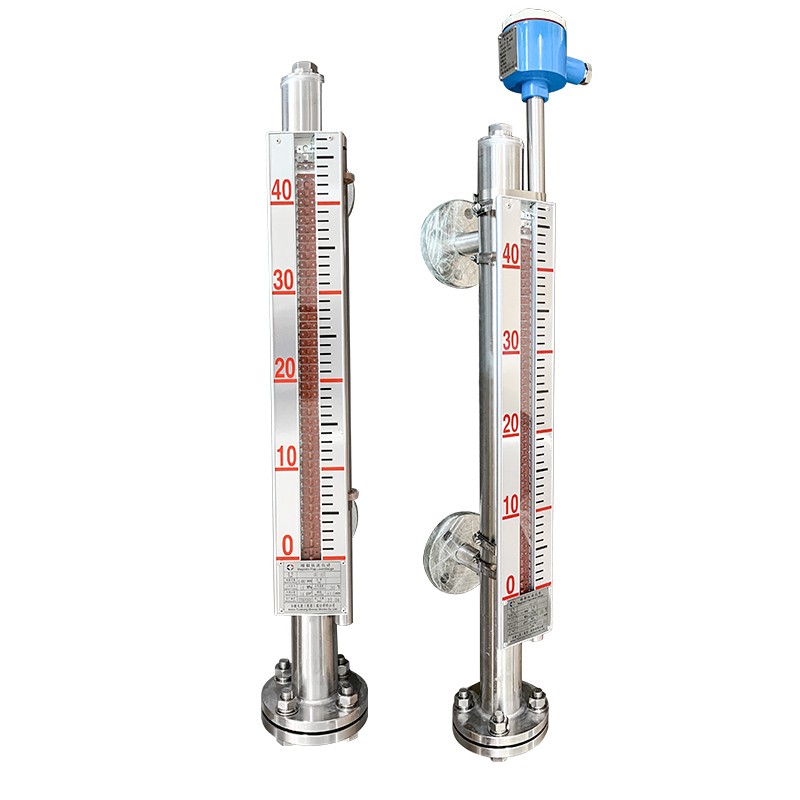

Anhui Tiankang UHZ-50 magnetic flap liquid level meter

Anhui Tiankang UHZ-50 magnetic flap liquid level meter is a floater type metal tube liquid level meter with scene indications. This series of products can reach strict sealing and leakproofness, and it can also safely and reliably measure the liquid level under the condition of high temperature, high pressure, high viscosity and strong corrosivity. In its whole measurement process, it has no blind area, striking display, visualized reading and large measuring range. Combined with liquid level alarming and control switch, it can realize limit alarming and control of the liquid level or the boundary level. Combined with liquid level transmitter, it can convert the liquid level or the boundary level signals to two-wire system 4-20ADC standard signals, thus realizing distant detection, direction, record and control. This series of products are widely used in the liquid level measurement and control in the manufacturing process of industries like electricity, petroleum, chemical industry, metallurgy, environmental protection, shipping, construction and food.

Anhui Tiankang UHZ-50 magnetic flap liquid level meter Product Features
1.Suitable for measuring the liquid level of media inside containers, and can be equipped with additionalfunctions such as remote transmission gauges and level controllers.2.Offers a clear and prominent display, with the flexibility to adjust the display orientation based on userpreferences.
3.Wide measurement range, without being restricted by container height.
4.Ensures reliable sealing and safety as the display components are fully isolated from the measured medium.
5.Simple structure,easyinstallation, and convenient maintenance.
6. Resistant to corrosion and designed to be explosion-proof.
