AnHui TianKang Group TK3100 Series Metal Tube Rotameter

Anhui Tiankang TK3100 metal tube rotor flowmeter can be equipped with various converters to translate the flow rate into standard electrical signals (such as 4-20mA), enabling remote display, recording, accumulation, and control. This makes it suitable for measuring both liquids and gases. The design includes multiple structures for different pipeline conditions and special fluid measurement requirements, such as insulated jacket types and models with dampers. Custom designs like high-pressure or high-temperature versions are also available to meet specific user needs,,another flowmeter,Anhui Tiankang Group TK1000 series electromagnetic flowmeter.

The metal tube rotameter is composed of three main components:

1. Measuring Tube: This is the main body where the measurement takes place.
2. Conical Float: The float inside the tube, whose position is proportional to the flow rate.
3. Indicator: Displays the flow rate, transmitting the float's displacement via a magnetic coupling system without physical contact.

Features and Applications

The metal tube rotameter offers reliable and applicable functionalities for various applications, including:

• On-site Pointer Indication
• LCD Display: Displays instantaneous and cumulative flow.
• Power Supply Options: Battery, 24VDC, and 220VAC, allowing users to choose according to site conditions.

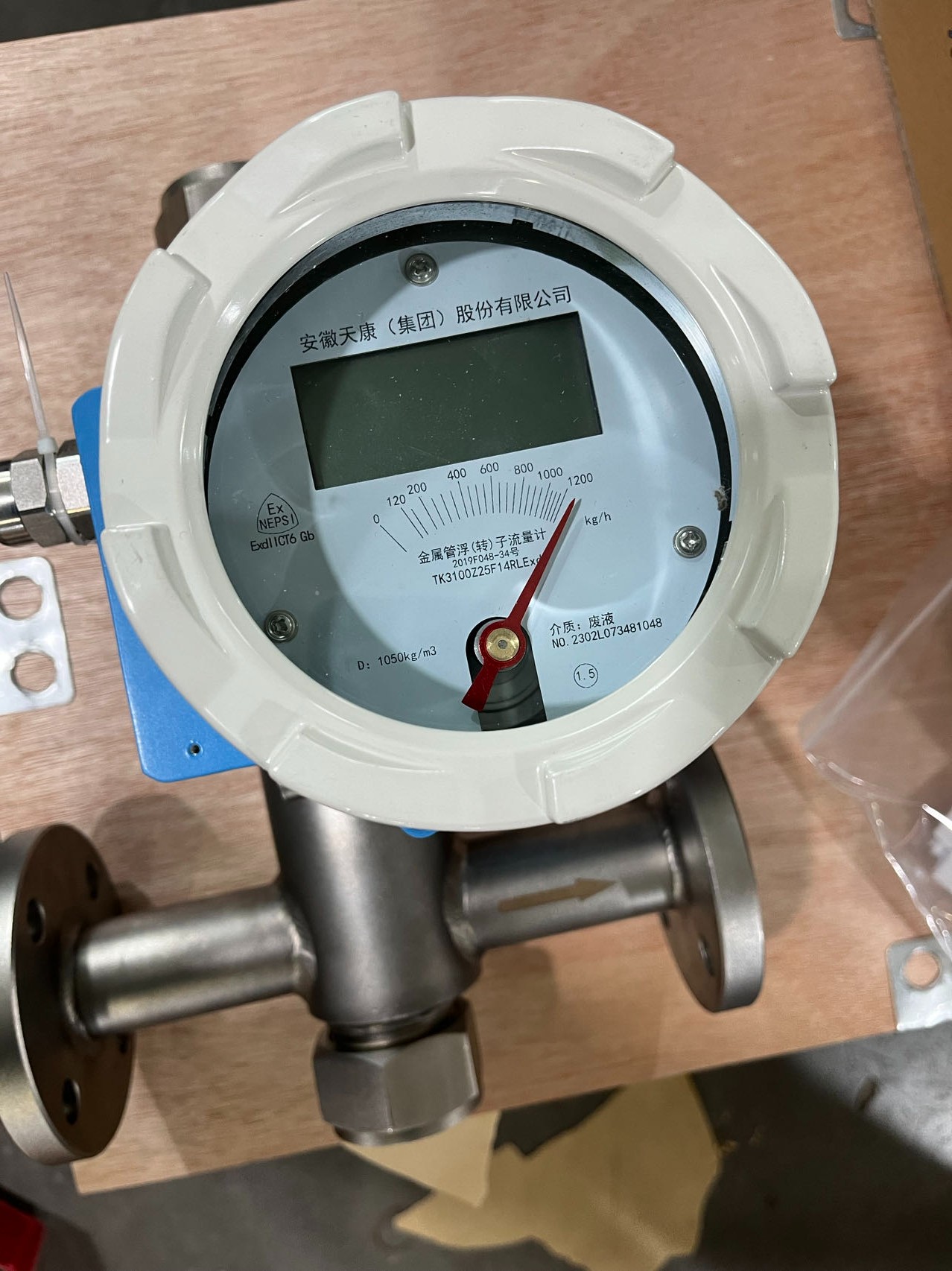

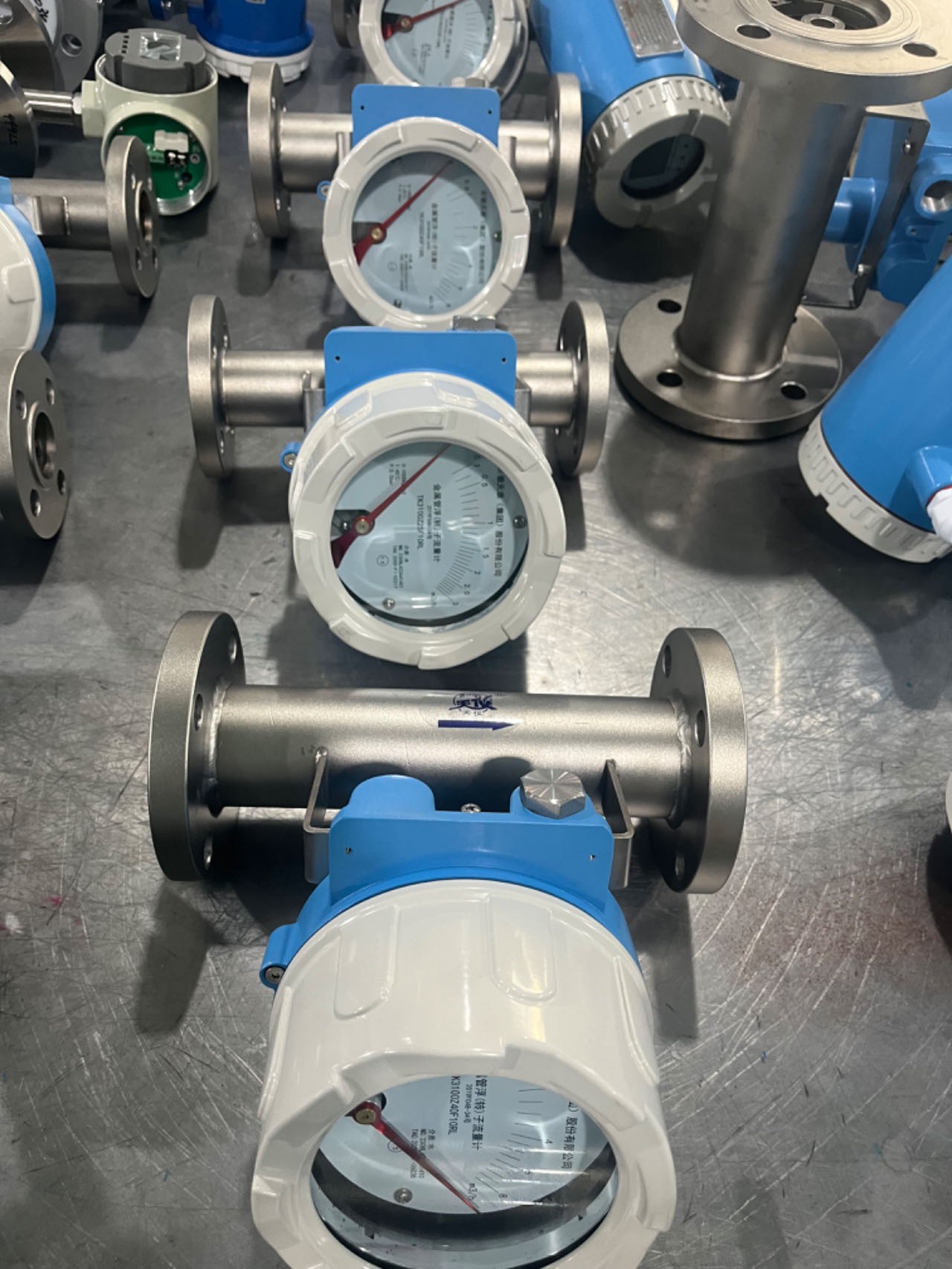

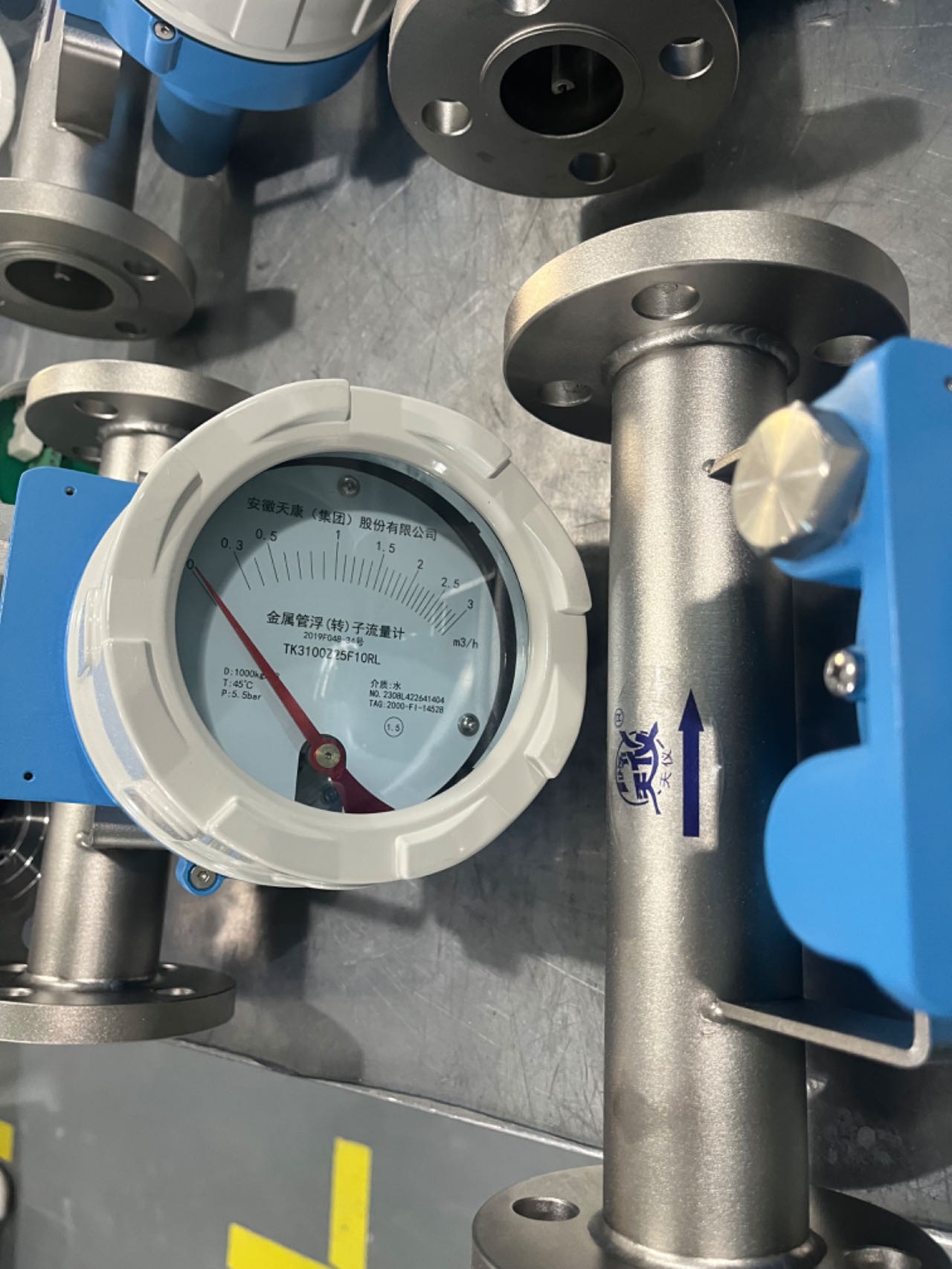

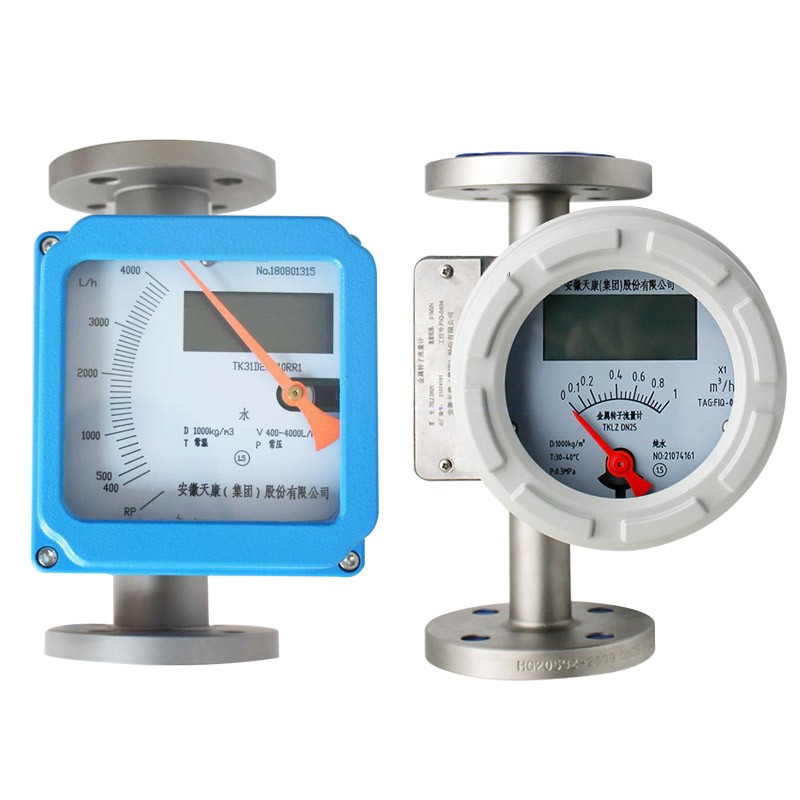

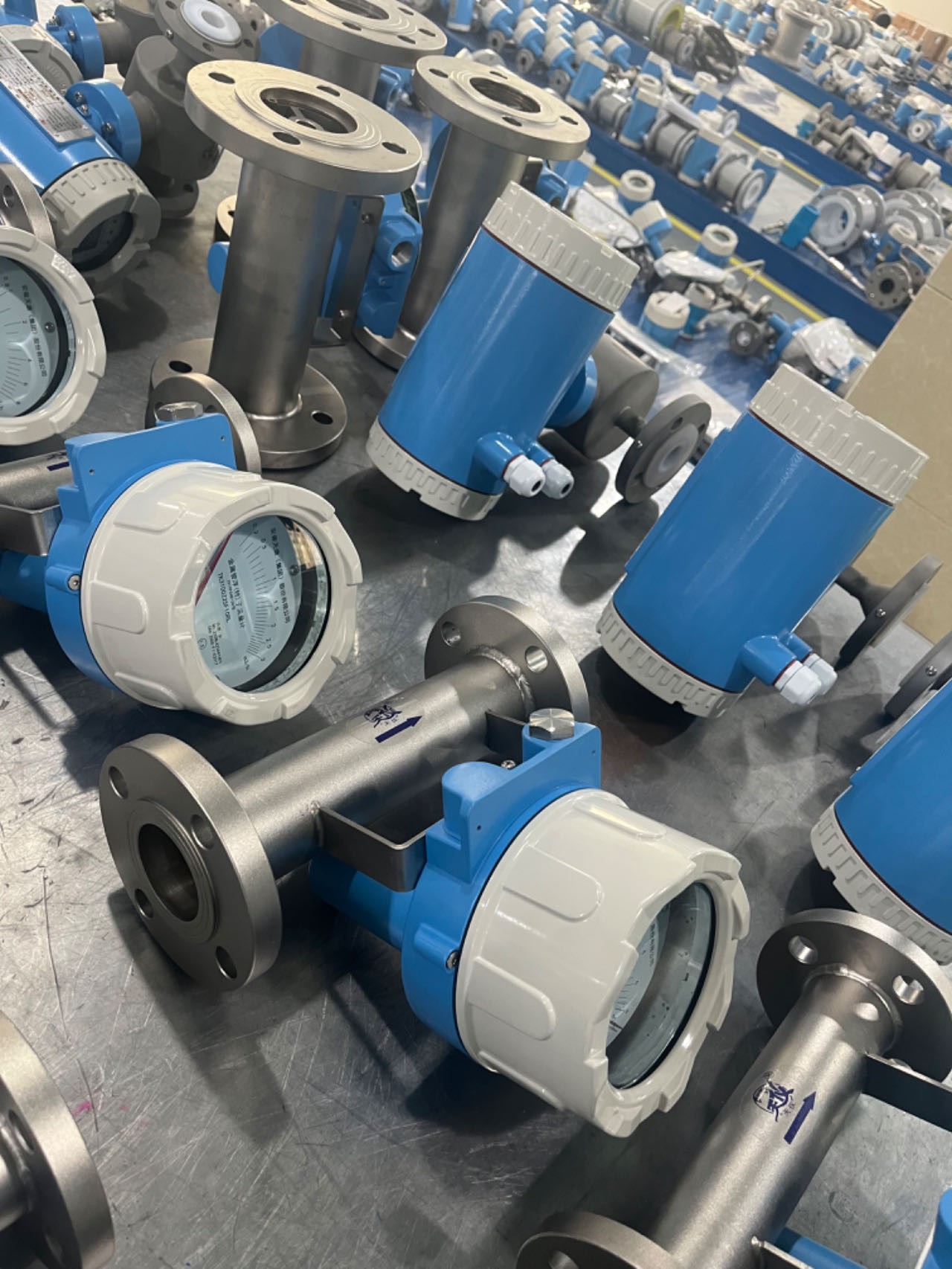

Anhui Tiankang TK3100 metal tube rotor flowmeter

The TK3100 series metal tube float flow meter utilizes a variable area measurement principle and modern high-tech components. Known for its simple structure, long service life, and linear scale, it is widely used in industries such as petroleum, chemical, power plants, food, pharmaceuticals, and water treatment.

Technical Specifications

• Measurement Range:
  • Water (20°C): 2.5-150,000 L/h
  • Air (1.013 bar abs, 20°C): 0.07-3000 m³/h
• Range Ratio: 10:1, 5:1
• Accuracy Class: 1.5, 2.5
• Pressure Loss: Refer to the flow chart
• Measuring Tube: Conical measuring tube, Orifice plate measuring tube
• Scale Plate Division: Based on flow units
• Instrument Diameter: DN15-DN150 (other diameters can be customized)
• Flange Connection: DN15-DN50/PN4.0, DN80-DN150/PN1.6
• Flange Standard: GB/T9119.10-88 (customizable according to user-provided flange standards)
• Insulation Jacket Flange: DN15, DN25/PN4.0
• Insulation Jacket Tube: φ12
• Special Types: High-pressure, threaded, and other special types available upon request
• Medium Viscosity: DN15 ≤ 5mPa.s, DN25～DN150 ≤ 250mPa.s
• Medium Temperature: -80∽200℃ (standard type), 0∽85℃ (corrosion-resistant type), -80∽300℃ (high-temperature type)
• Environmental Temperature: -25∽60℃
• Protection Level: IP65
• Electrical Signal Output: 4-20mA (two-wire system), linearity: 1%, temperature influence: 0.5%/10℃
• Electrical Interface: M20×1.5 (standard type)
• Power Supply: 24V DC (standard type)
• Power Consumption: ≤3W
• Limit Alarm: 24V DC, power consumption ≤3W, contact capacity: 3A/220V, operating temperature: -25∽60℃, explosion-proof level: ExdⅡCT4~6

Anhui Tiankang TK3100 metal tube rotor flowmeter Selection and Precautions

The TK3100 series offers various configurations to meet different user needs. Key features include:

• Diameter Options: DN15, DN25, DN50, DN80, DN100, DN150
• Structure Types:
  • F10: Bottom inlet and top outlet (default)
  • F11: Bottom inlet and side outlet
  • F12: Side inlet and side outlet
  • F13: Right inlet and left outlet
  • F14: Left inlet and right outlet
• Material Choices:
  • RR0: 0Cr18Ni12Mo2Ti, suitable for all structure types
  • RR1: 1Cr18Ni9Ti, suitable for all structure types
  • RL: 316L, suitable for all structure types
  • RP: PTFE, suitable for F10 structure
  • Ti: Titanium alloy, suitable for F10 structure
  • HC: Hastelloy, suitable for F10 structure
• Additional Structures:
  • T: Jacketed type for F10 structure
  • Z: Damping type for all structure types
  • G: High-temperature type for all structure types
  • Y: High-pressure type for all structure types

Anhui Tiankang TK3100 metal tube rotor flowmeter Indicators:

• Default: On-site pointer display of instantaneous flow
• ES1: 24VDC power supply, on-site pointer display of instantaneous flow, angle displacement transmitter, 4-20mA signal
• ES2: 24VDC power supply, on-site pointer display of instantaneous flow, non-contact transmitter, 4-20mA signal
• K1: With one upper limit alarm output
• K2: With one lower limit alarm output
• K12: With one upper and one lower limit alarm output
• JSB: Battery-powered, LCD display of instantaneous and cumulative flow
• JSC: 240VAC power supply, LCD display of instantaneous and cumulative flow
• JSD: 24V DC power supply, LCD display of instantaneous and cumulative flow
• JSE: 24V DC power supply, LCD display of instantaneous and cumulative flow, 4-20mA signal

Explosion-proof Type:

• Default: Ordinary type with square head
• Exd: Explosion-proof type with round head

Example Model Number:

• TK3100-Z-15-F10-RR0-(T)-(ES1)-(HRAT)-Exd: Pointer/DN15 caliber/bottom inlet and top outlet/material 0Cr18Ni12Mo2Ti/jacket type/4-20mA/HART protocol/explosion-proof

Anhui Tiankang TK3100 metal tube rotor flowmeter Flow Range Table by Diameter

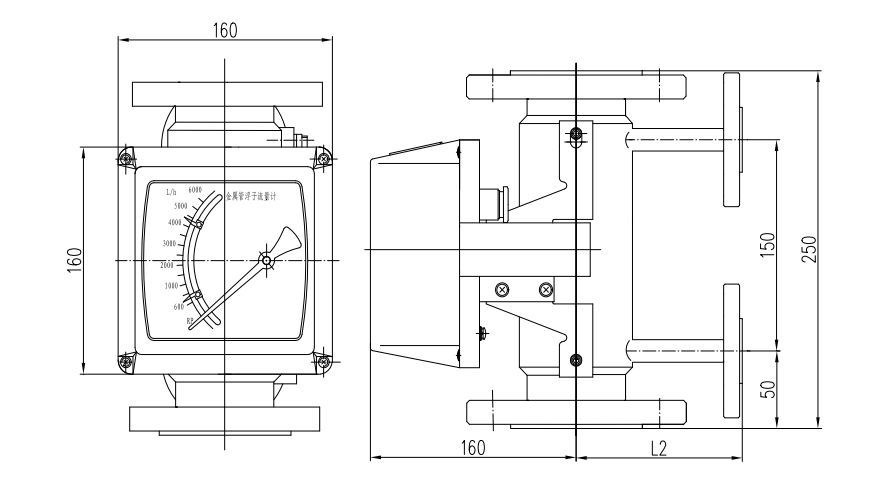

Anhui Tiankang TK3100 metal tube rotor flowmeter Dimensions

Anhui Tiankang TK3100 metal tube rotor flowmeter,Anhui Tiankang TK3100 flowmeter,Since the working conditions of each user are different, please indicate the name, flow rate and diameter of the medium to be measured, and also indicate the medium pressure, temperature, density and viscosity so that we can help users select the right model. We can also make a flow scale in working state or convert the gas in working state into the flow scale in standard state according to user requirements.
