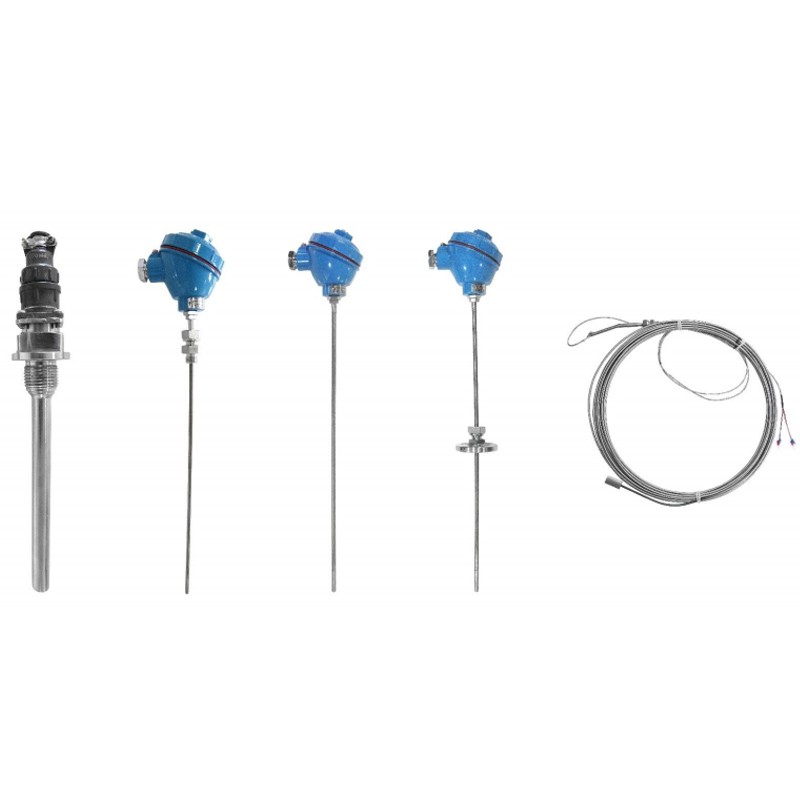

AnHui TianKang Armored Thermocouple
Attachment INQUIRY EMAIL

Product Description:

AnHui TianKang Armored Thermocouple Usually used in conjunction with display instruments,recording instruments,electronic computers and so on.Direct measurement of various production processes (0~1300)℃ range of liquid,steam and gas media and solid surface temperature.

AnHui TianKang Armored Thermocouple Principle

The electrodes of the Armored Thermocouple consist of two different conductor materials.When there is a temperature difference between the measuring end and the reference end,a thermoelectric potential is generated and the working instrument displays the temperature value corresponding to the thermoelectric potential.

AnHui TianKang Armored Thermocouple Features

● Less thermal response time,reducing dynamic errors.

●Bendable mounting for use.

●Large measuring range.

●High mechanical strength,good pressure resistance.

●Junction box protection level IP65,Ip66.

Main technical parameters

Product implementation standard:IEC60584,GB/T18404-2001.

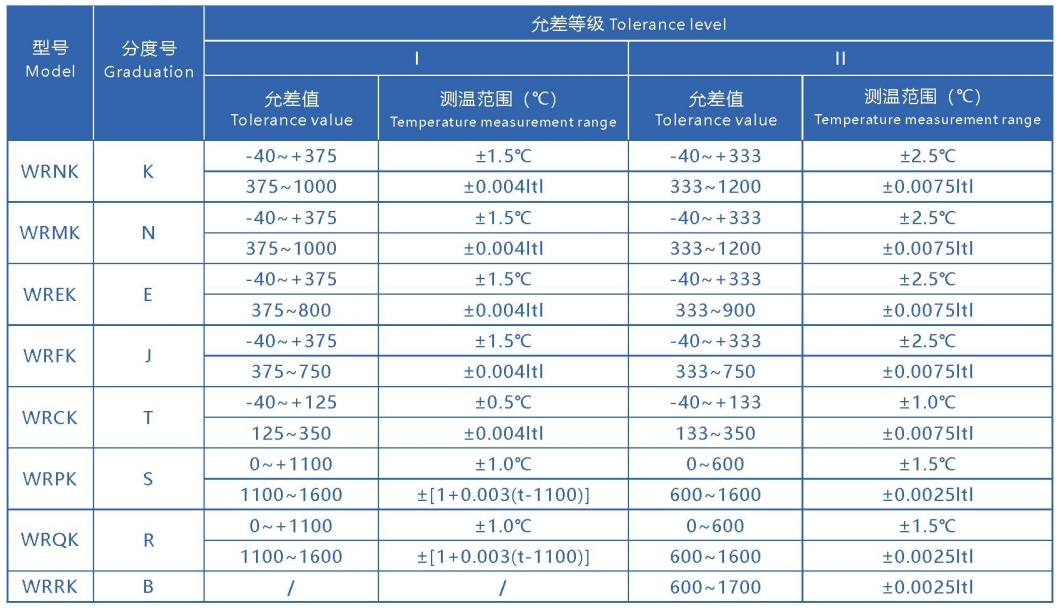

AnHui TianKang Armored Thermocouple Range for temperature measurement and error-tolerance

Note: t is the absolute value of the temperature point, the unit is ℃

Insulation resistance for normal temperature

In terms of the sheath thermocouple, the environment temperature is 20 + 15℃, the relative humidity is not more than 80%, the test voltage is 500 + 50V(DC), the insulation resistance between electrode and outer sleeve≥1000MΩ.m.That is to say, the insulation resistance for sample of 1m is 1000MΩ;the insulation resistance for sample of 10m is 100MΩ.

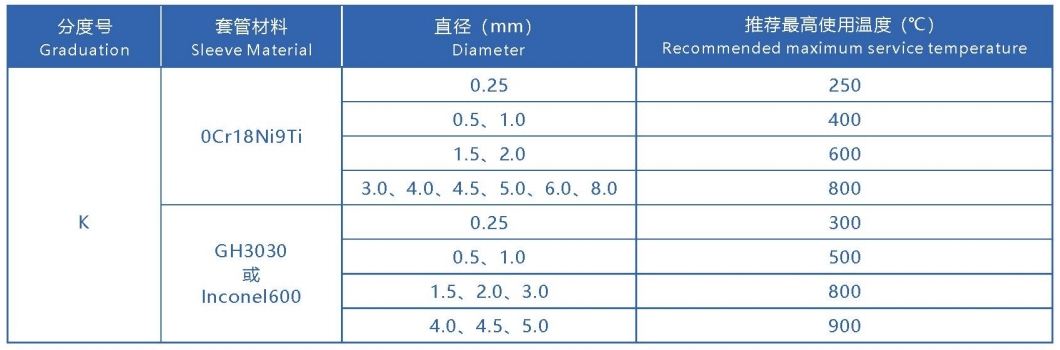

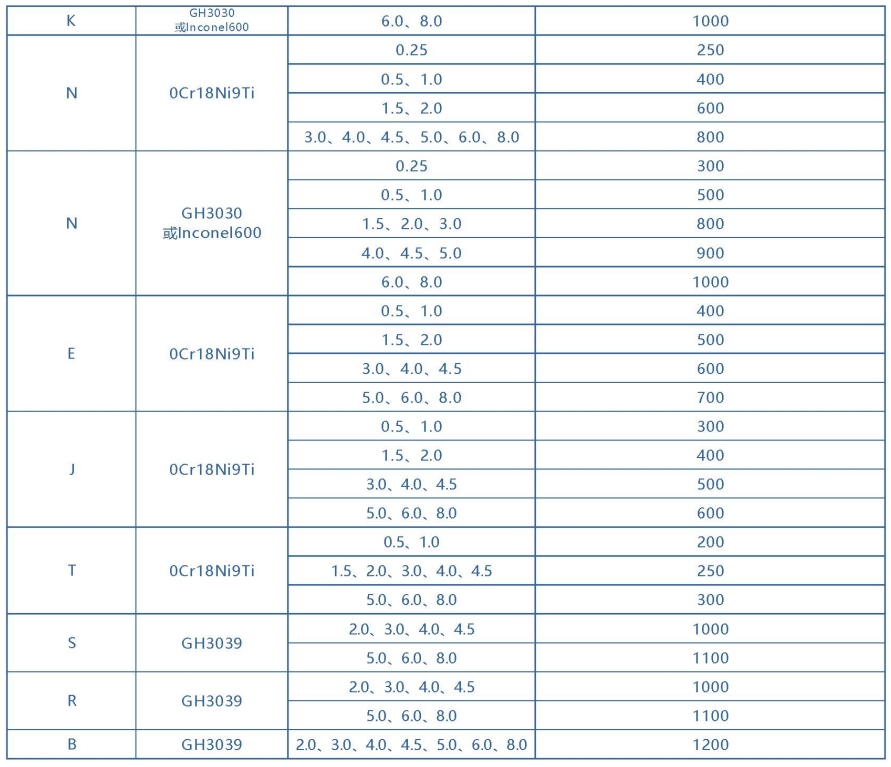

Diameter and material for the thermocouple wire

tiankang thermocouple

tiankang instrument

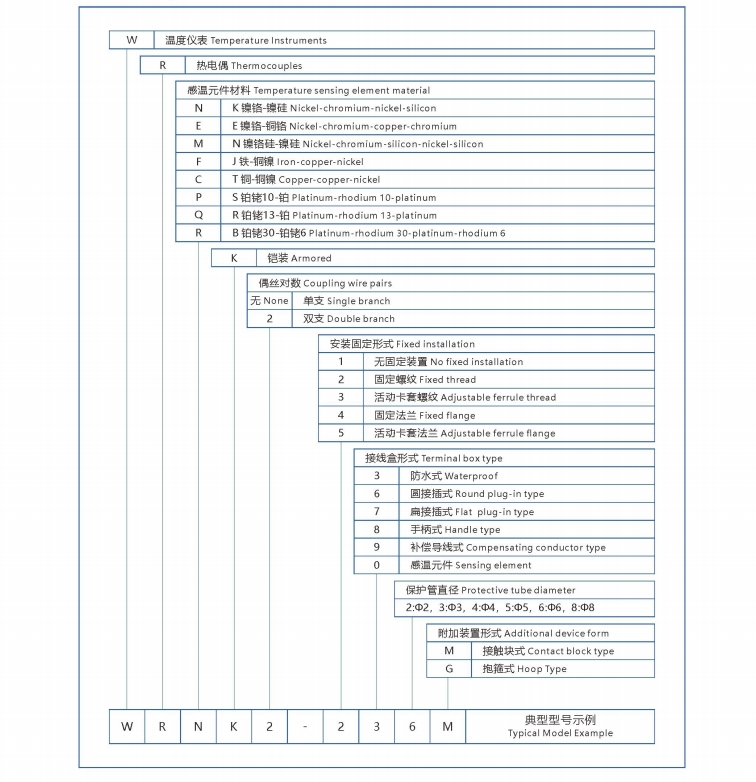

AnHui TianKang Armored Thermocouple Model name method

AnHui TianKang Armored Thermocouple Selection Instructions

Model.
Graduation number
Accuracy level.

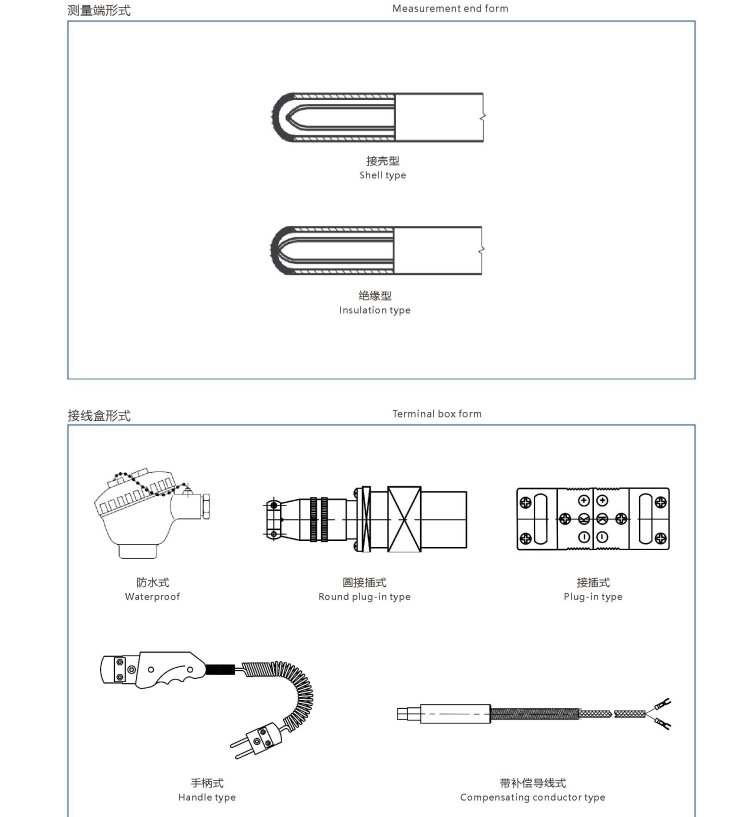

Installation and fixation form.
Protective tube material.
Length orinsertion depth.Example: Armored thermocouple, K-type, Class l, fixed ferrule thread, protective tube GH3030, length 450mm, insertiondepth300mm,WRNK-236,L*|=450*300, Class l, protective tube GH3030.
