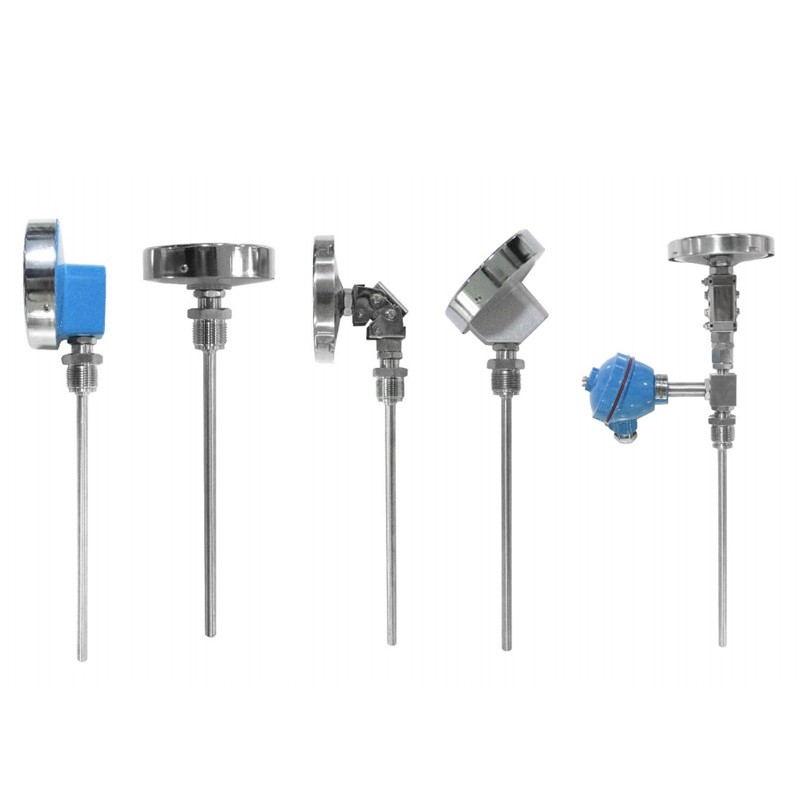

AnHui TianKang(Group) Shares Co., Ltd. Bimetallic thermometer

AnHui TianKang(Group) Shares Co., Ltd. Bimetallic thermometer is a kind of on-site detection instrument for measuring low and medium temperatures, which candirectly measure the temperature of liquid, steam and gas media in the range of -80'c~+500'c in various productionprocesses.

AnHui TianKang(Group) Shares Co., Ltd. Bimetallic thermometer Principles

Bimetal thermometers are based on a bimetal sheet wound into a circular bend, When one end is expanded by heat,the pointerrotates and the working instrument dis plays the temperature value corresponding to the thermopotential.

AnHui TianKang(Group) Shares Co., Ltd. Bimetallic thermometer Parameters

On-site display of temperature,intuitive and convenient;

With automatic power cut off and alarm function;

Safe and reliable, long service life.

A variety of structural forms, can meet differentrequirements.

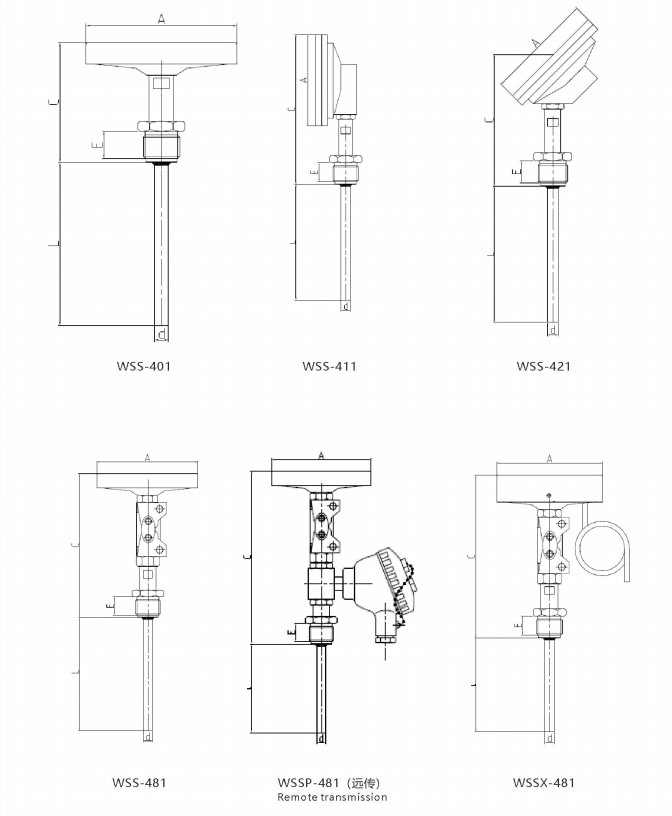

AnHui TianKang(Group) Shares Co., Ltd. Bimetallic thermometer Category

*Bimetal tnermometer-ordmnary type, dlal pointer indicates the temperature on the spot,

*Electric contact bimetal thermometer: in addition to field indication of temperature, through the upper and lower givencontacts, when the temperature reaches the given value, contact closure or disconnection to make the control circuit in therelay action, so as to automatically control and alarm;

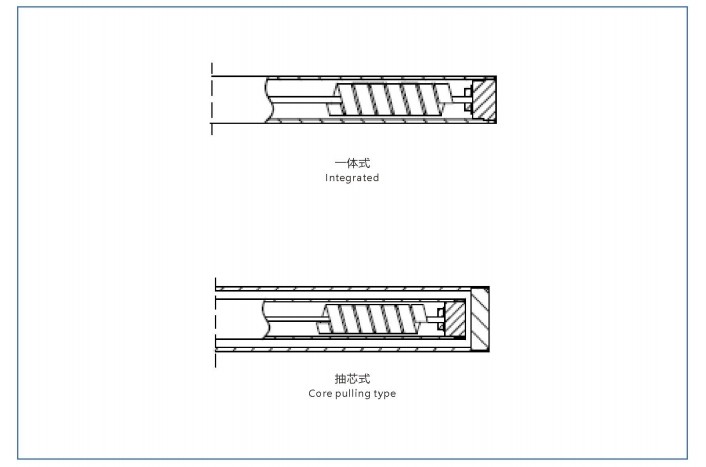

With thermocouple (resistance) integrated bimetallic thermometer, armored thermocouple (resistance) installed in thebimetalic thermometer protection tube, not only to meet the requirements of field Temperature measurement requirements,but also to meet therequirements of long-distance transmission:

Explosion-proof bimetal thermometer: Used in the production site there are hydrocarbons and other explosive gases whenthe electric contact type bimetal thermometer, measuring its various processes (-80 ~ +500) range of liquid, gas medium orsolid surface temperature. In addition to realizing the characteristics of the electric contact type itself it also meets therequirements of explosion-proof.

AnHui TianKang(Group) Shares Co., Ltd. Bimetallic thermometer Parameters

1.Executive Standard of the Product:JB/T8803.

2.Nominal diameterof standard disk:60,100,150.

3.Accuracy levelBimetalThermometer: Level 1.0,Level 1.5;Armored Thermocouple (Pt100): Level A, Level B

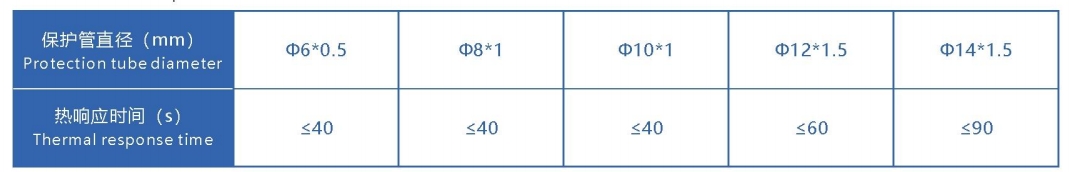

4.Thermal response time.

5.Protectionlevel:IP55,IP65,1p66.

6. Angle adjustment error: the angle adjustment error should not exceed 1.0% ofits range.

7, Return error, the return error of the thermometer should not be greater than the absolute value ofthe basic error limit

8. Repeatability: thermometer repeatability limit range cut should not be greater than 1/2 of the absolute value of thebasic errorlimit.

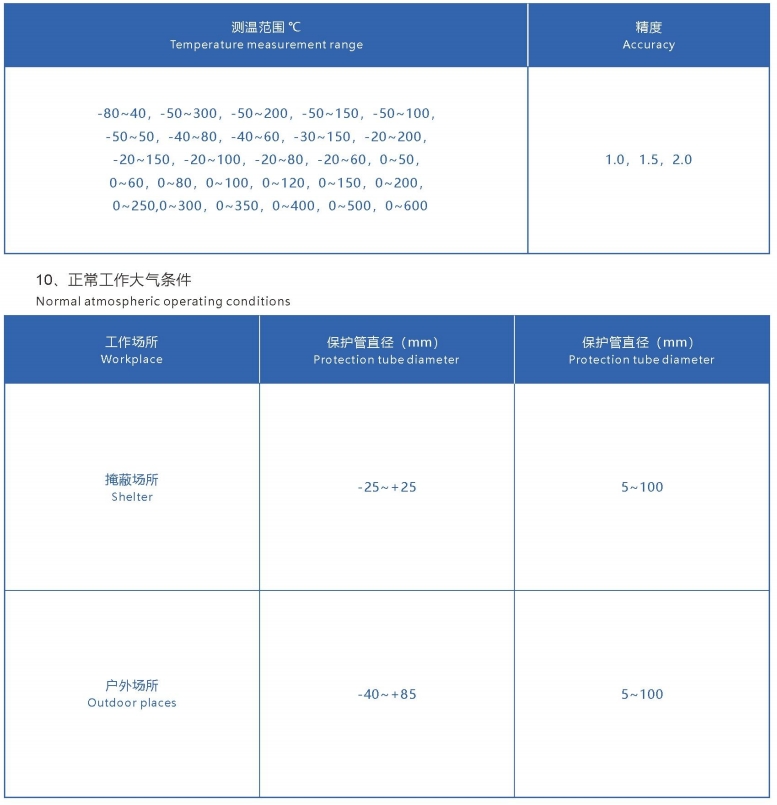

9.Temperature measurement range.

AnHui TianKang(Group) Shares Co., Ltd. Bimetallic thermometer Electrical parameters and wiring of the electrical contact typeeElectrical parametersRated power: 10VA，Working voltage: 220/380VA.C:.Maximum allowable current: 0.7A.
