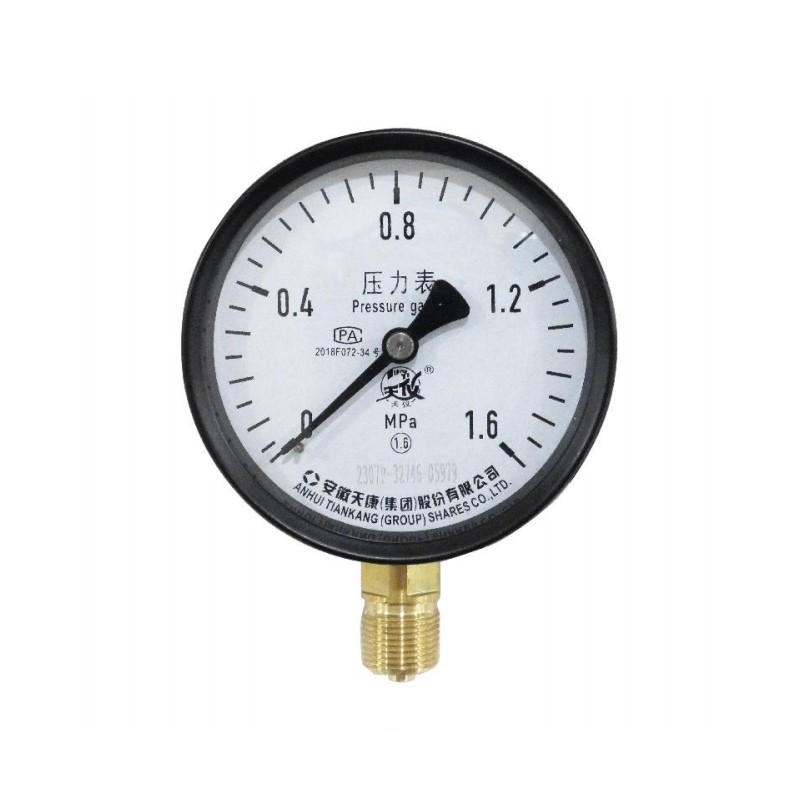

AnHui Tiankang ordinary pressure gauge Y-60/Y-100/Y-150

AnHui Tiankang ordinary pressure gauge Y-60/Y-100/Y-150 are suitable for measuring the pressure of liquids or gases that are non-explosive, non crystallizing, non-solidifying, and non-corrosive to copper alloys.

AnHui Tiankang ordinary pressure gauge Y-60/Y-100/Y-150 Principle

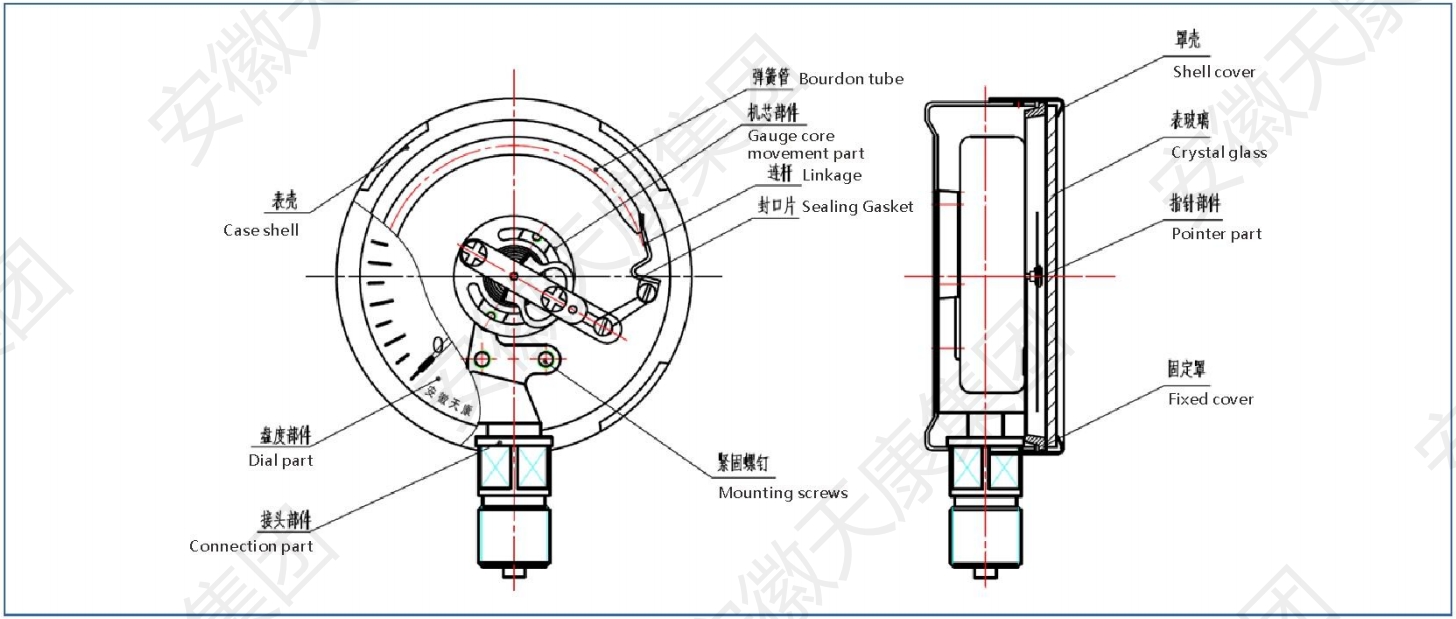

The measurement system of the instrument consists of a connection,a Bourdon tube, and a transmissionmechanism. The reading is indicated by a pointer. The Bourdon tube, which is the sensitive element, is bent into circular shape with an elintical cross-section. The pressure of the measured medium acts on the inside of theBourdon tube, causing the eliptical cross-section of the tube to tend towards a circular shape. The magnitude otdeformation depends on the pressure of the measured medium, The deformation of the Bourdon tube indirectlydisplays the pressure of the measured medium through the movement, which is then shown by the pointer. "C'lype Bourdon tubes can be used for measuring pressures up to 10MPa, For higher pressures, the Bourdon tube ismade with multiple coils or spiral coils on the same plane.

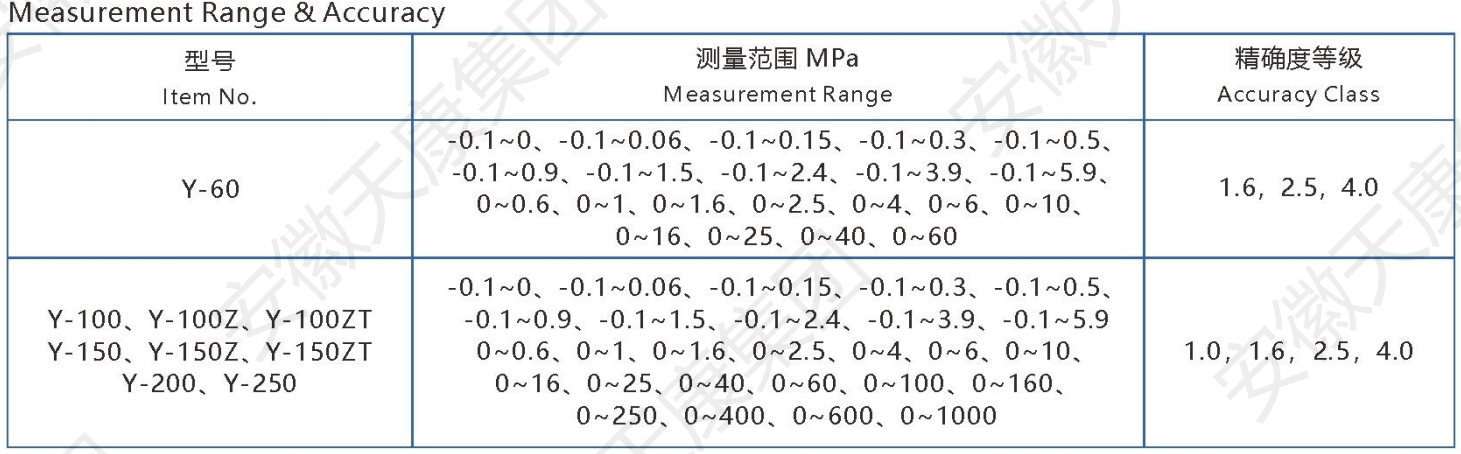

AnHui Tiankang ordinary pressure gauge Y-60/Y-100/Y-150 Main Technical Specifications

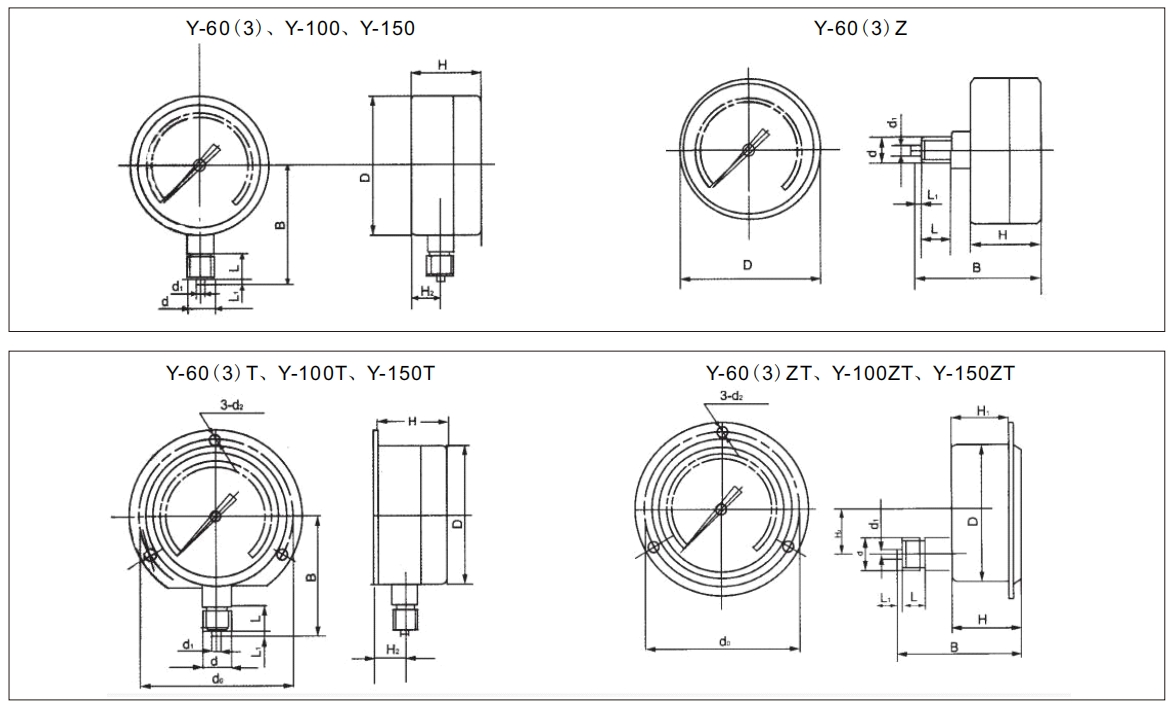

AnHui Tiankang ordinary pressure gauge Y-60/Y-100/Y-150 Outline dimension

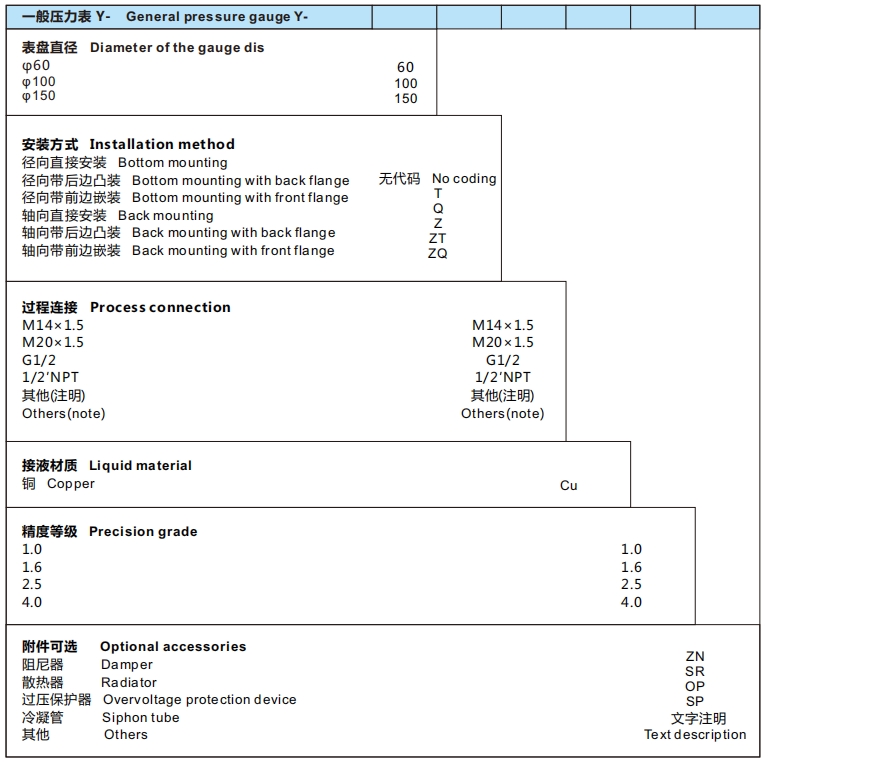

AnHui Tiankang ordinary pressure gauge Y-60/Y-100/Y-150 selection of generalpressure gauge

Note:AnHui Tiankang ordinary pressure gauge Y-60/Y-100/Y-150 installation methods: for the φ60, the conventional lype is the axial concentric one, for the φ100, φ150, itis the axial eccentrictype. lf other ins tallation is required, please consult the sales angineer and specify the demand when ordering.
