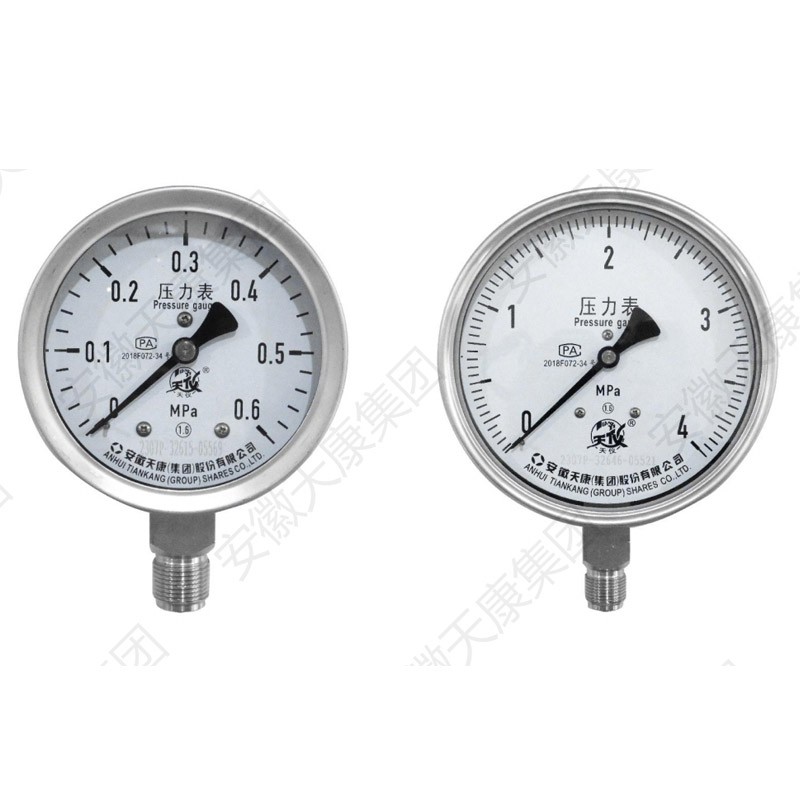

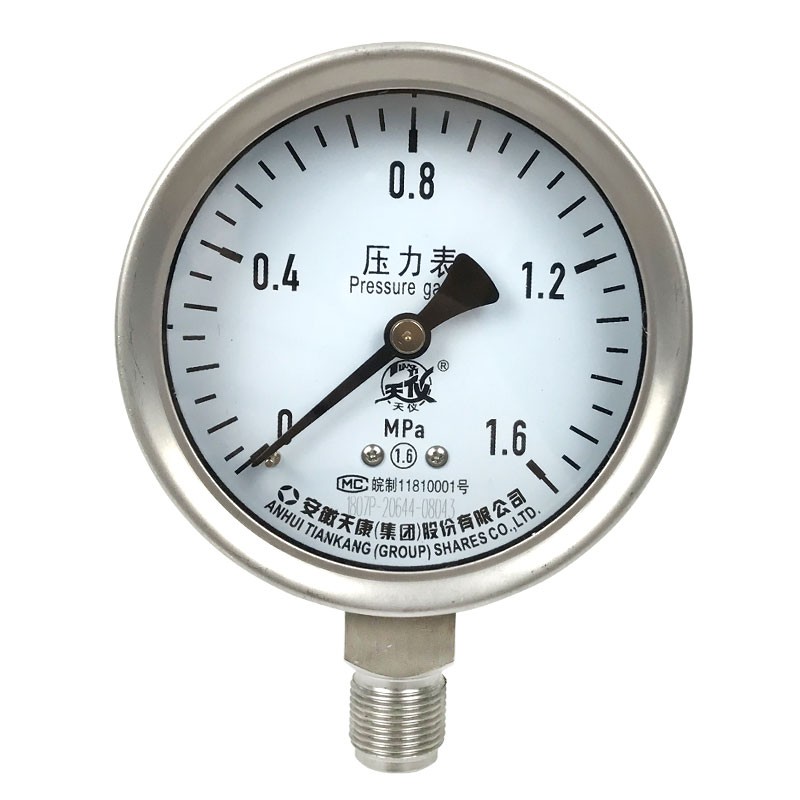

Anhui TianKang Group Stainless Steel Pressure Gauge YB-60/YB100/YB-150

Anhui TianKang Group Stainless Steel Pressure Gauge YB-60/YB100/YB-150 is widely used in petroleum, chemical, metallurgical, light industry, chemicalfiber and other industrial sectors. it can measure the pressure of corrosive media, and can be used in places withviolent vibration and harsh working conditions.

Anhui TianKang Group Stainless Steel Pressure Gauge YB-60/YB100/YB-150 Product Principle

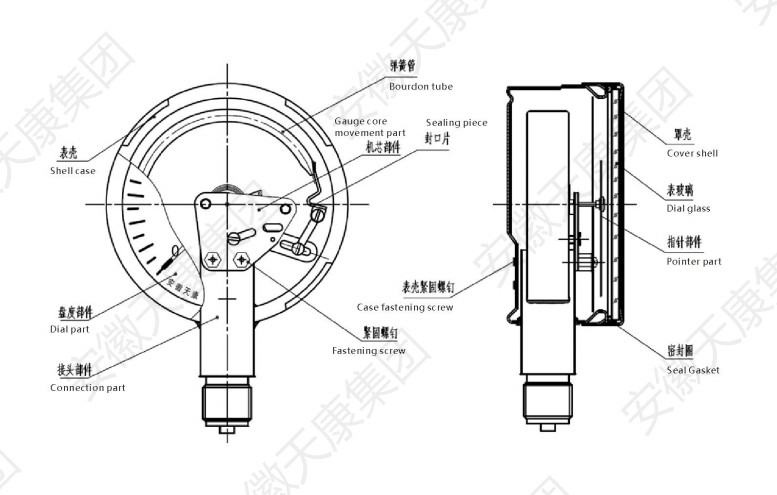

The working principle of a pressure gauge is that the bourdon tube produces elastic deformation under the actionof pressure and vacuum, which causes displacement of the tube end. This displacement is enlarged through amechanical transmission mechanism and passed on to the indicating device. The pointer then indicates themeasured pressure or vacuum value on the dial which is graduated with legal metrology units.

Anhui TianKang Group Stainless Steel Pressure Gauge YB-60/YB100/YB-150 Main Technical Specifications

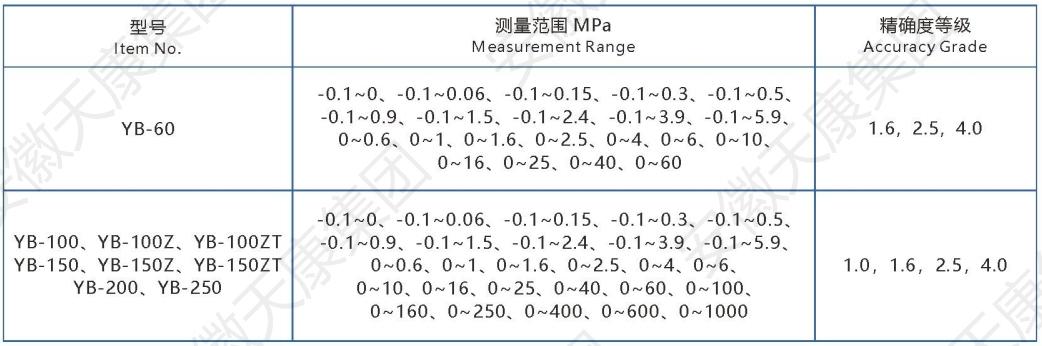

Measurement Range &Accuracy

Operatingtemperature range: -40~70°C.

Temperature influence: ≤0.4%/10°C(whenoperating temperature deviates from 20±5°C)

Vibration resistance: V·H·3.

Shell protection rating:lP55,lP65, lp66.

Shell material:304SS,316SS

Wetted material:304SS,316SS

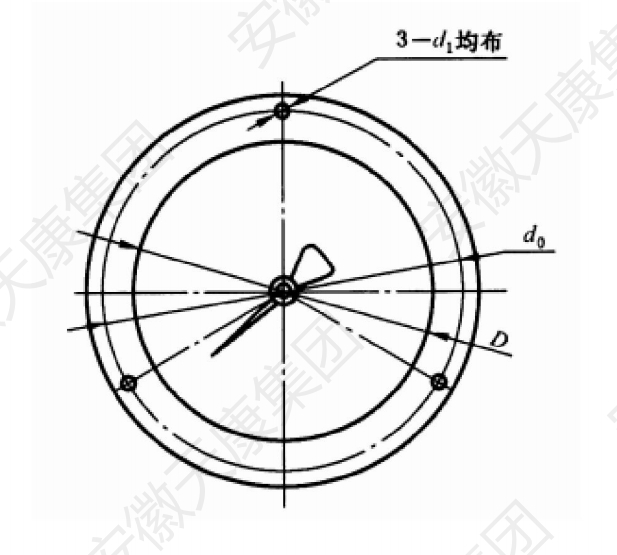

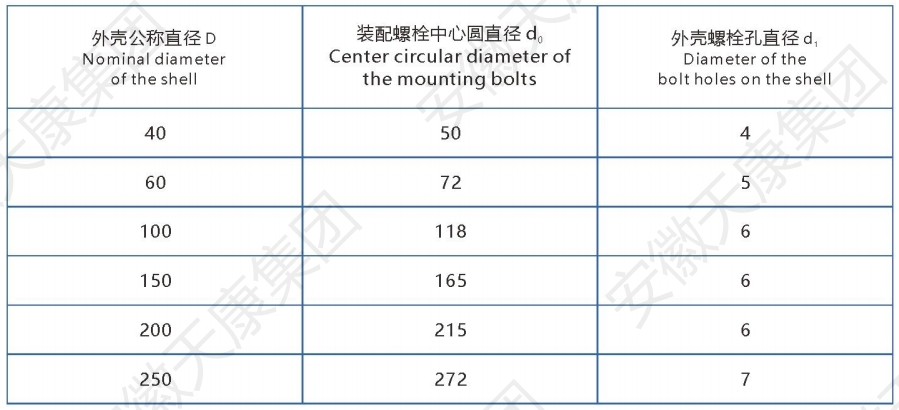

Anhui TianKang Group Stainless Steel Pressure Gauge YB-60/YB100/YB-150 Dimensions

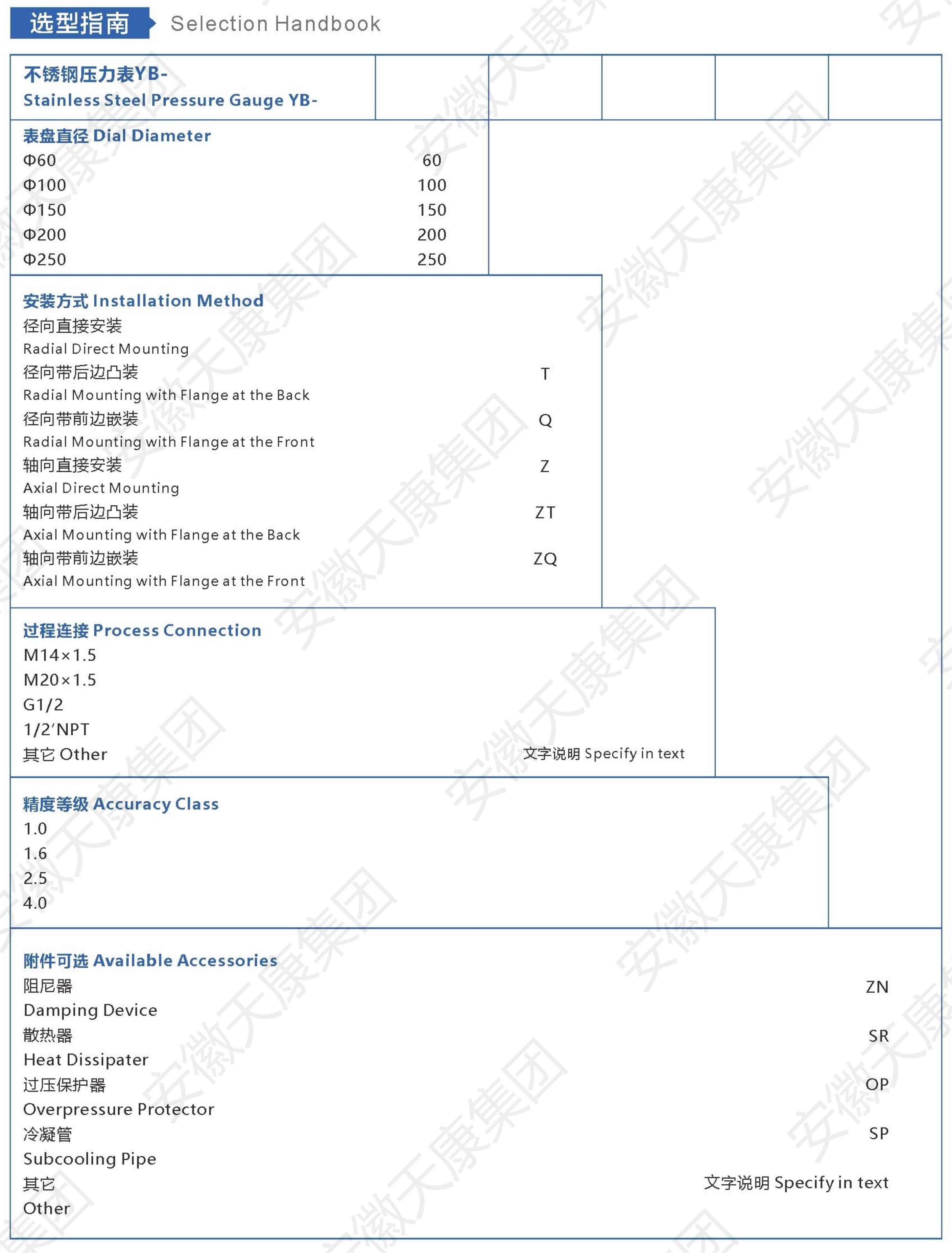

Anhui TianKang Group Stainless Steel Pressure Gauge YB-60/YB100/YB-150 Selection Handbook

Another common use pressure gauge,AnHui TianKang YM Diagram Pressure Gauge.
