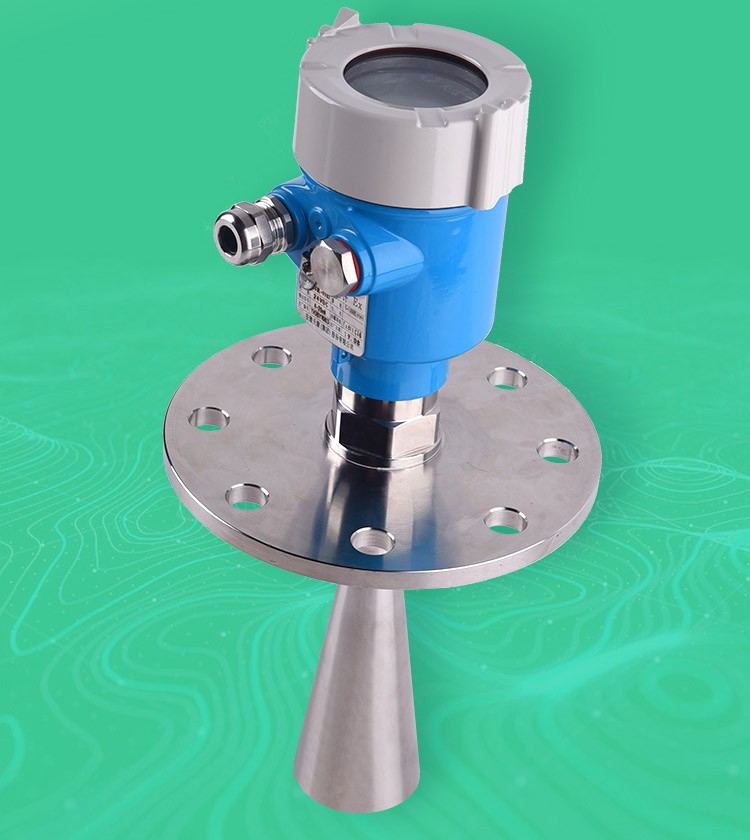

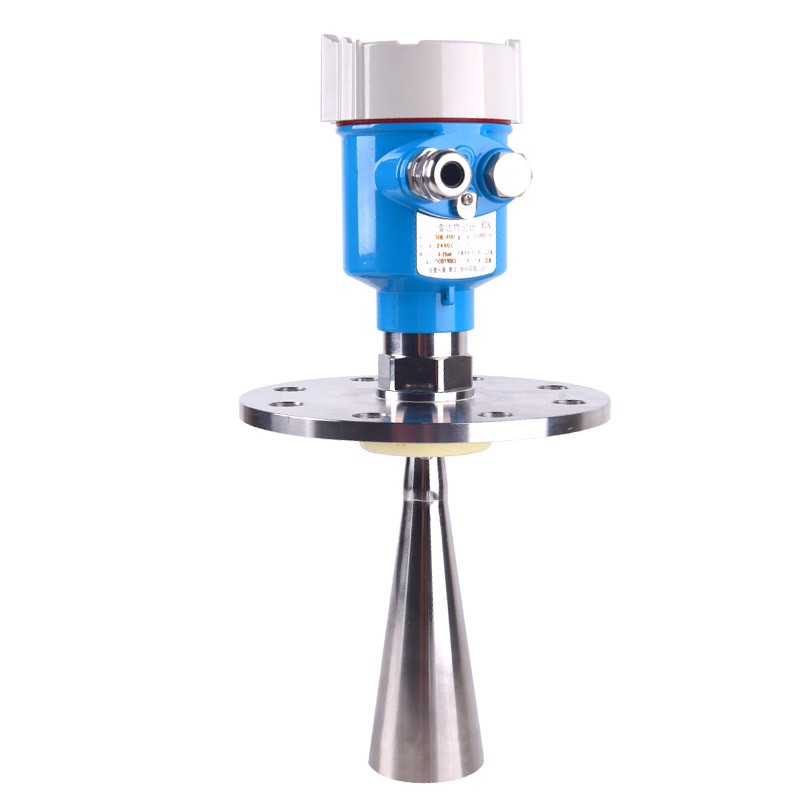

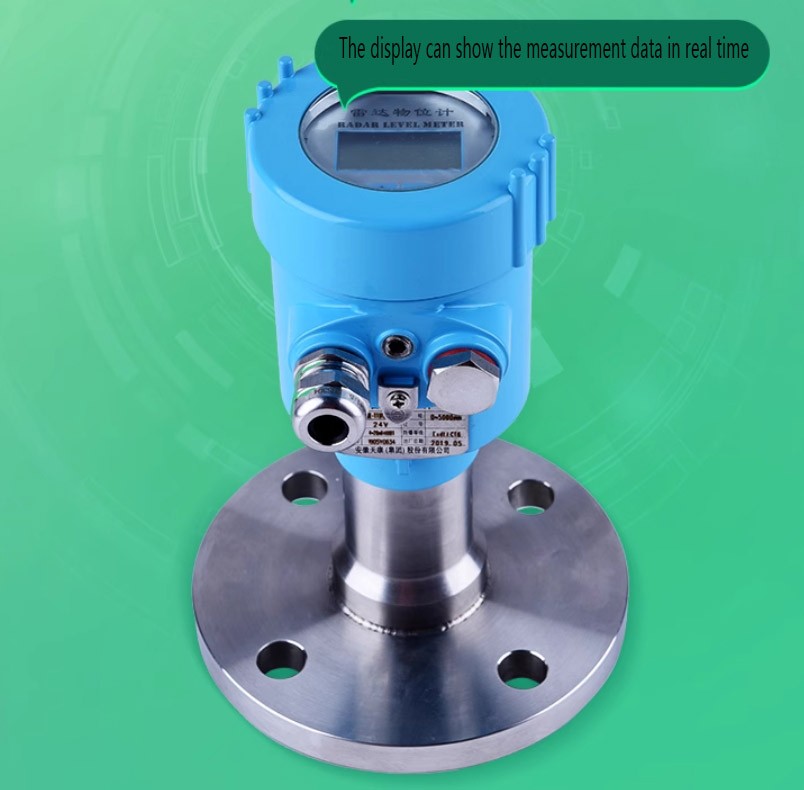

AnHui TianKang Group TKWL-1100 Series 26GHz High-Frequency Radar Level Gauge

AnHui TianKang Group TKWL-1100 Series 26GHz High-Frequency Radar Level Gauge is designed to provide a 4-20mA analog outputsignal and can measure distances up to 70m. The antenna is optimized for improved performance, and theadvanced microprocessor enables high-speed signal analysis, making the instrument suitable for measuringunder complex conditions in reactors or solid material silos,another more used level gauge,Anhui Tiankang UHZ-50 magnetic flap liquid level meter.

AnHui TianKang Group TKWL-1100 Series 26GHz High-Frequency Radar Level Gauge Principle

The radar level gauge antenna emits narrow microwave pulses, whichpropagate at the speed of light in space. When these pulses encounter thesurface of the measured medium, a portion of the energy is reflected backand received by the same antenna. The time interval between the transmittedand received pulses is directly proportional to the distance between theantenna and the surface of the measured medium. The radar level gauge usesa special correlation demodulation technique to accurately identify the timeinterval between the transmitted and received pulses, thereby furthercalculating the distance from the antenna to the surface of the measuredmedium.

AnHui TianKang Group TKWL-1100 Series 26GHz High-Frequency Radar Level GaugeFeatures

The radar level gauge, operating at a frequency of up to 26GHz, exhibits the following characteristics:

1.Non-contact measurement, no wear and tear, no contamination.

2.Small antenna size,facilitating easyinstallation.

3.Short wavelength, providing better reflection on inclined solid surfaces.

4.Minimal influence from changes in atmospheric water vapor, temperature, and pressure.

5.Capable of accurately reading true level echoes even in severely dusty environments.6.High signal-to-noise ratio, delivering superior performance even under fluctuating conditions.

AnHui TianKang Group TKWL-1100 Series 26GHz High-Frequency Radar Level Gauge Information

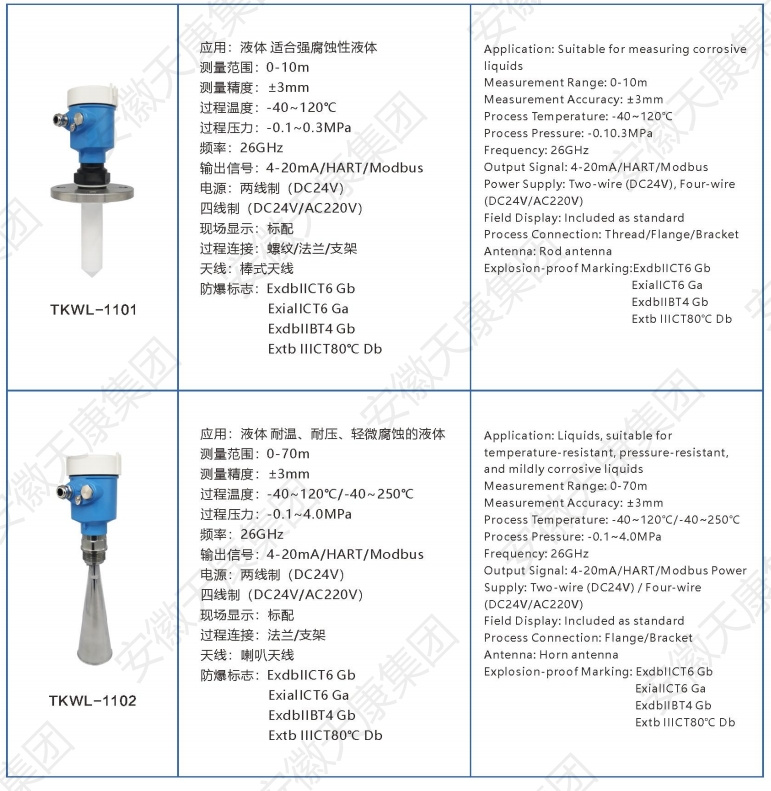

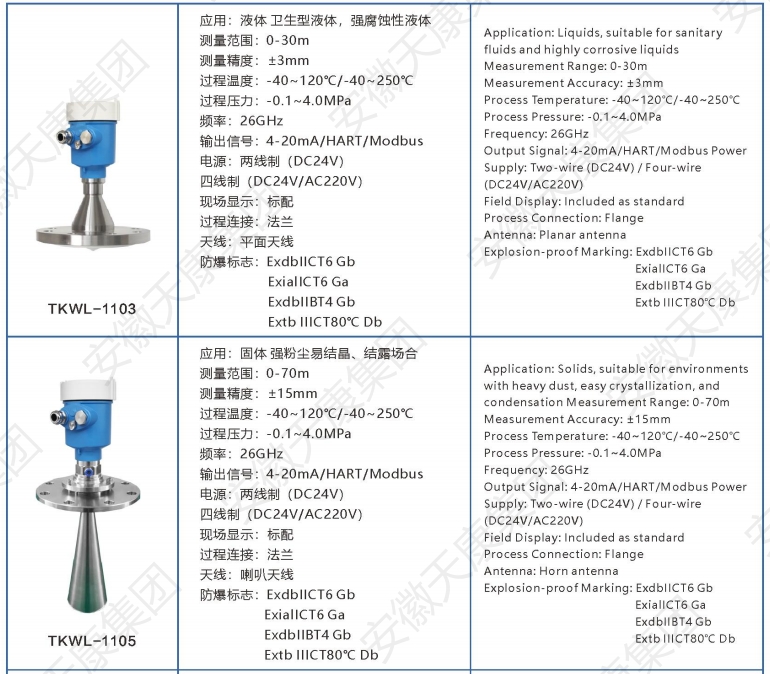

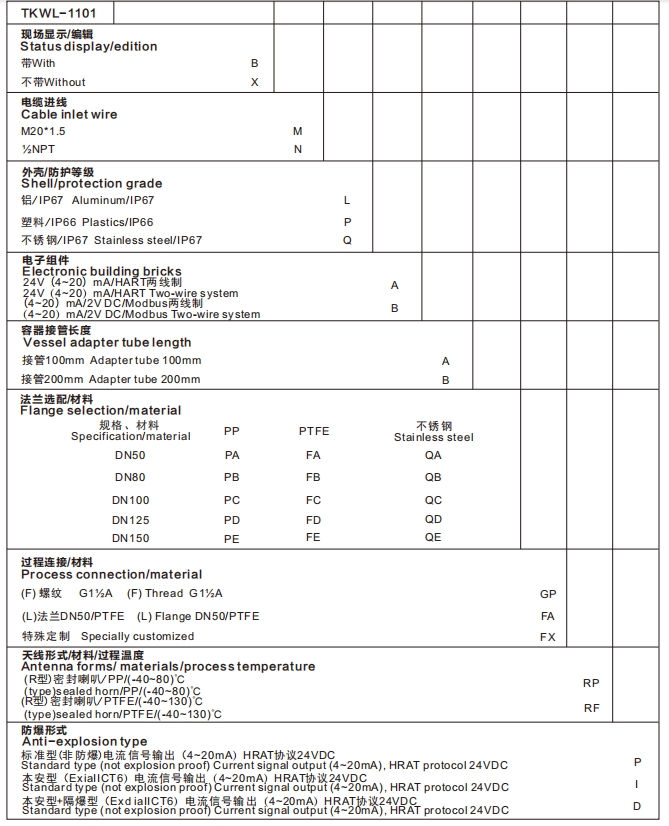

AnHui TianKang Group TKWL-1100 Series 26GHz High-Frequency Radar Level Gauge Model meaning

Only the meaning of TK1101 model is listed. Please contact us for the specific meanings of TK1102, TK1103, TK1104, TK1105, TK1106 AnHui TianKang Group TKWL-1100 Series 26GHz High-Frequency Radar Level Gauge.
